Removal and refitting

REMOVAL AND REFITTING

• Disconnect the negative (-) cable from the battery.
• Remove the door panel (see: PANEL) and the cellophane.
• Remove the door frame (see: FRAME) and take to a bench.

1. Disconnect the door safety closure rod from the clip on the frame.

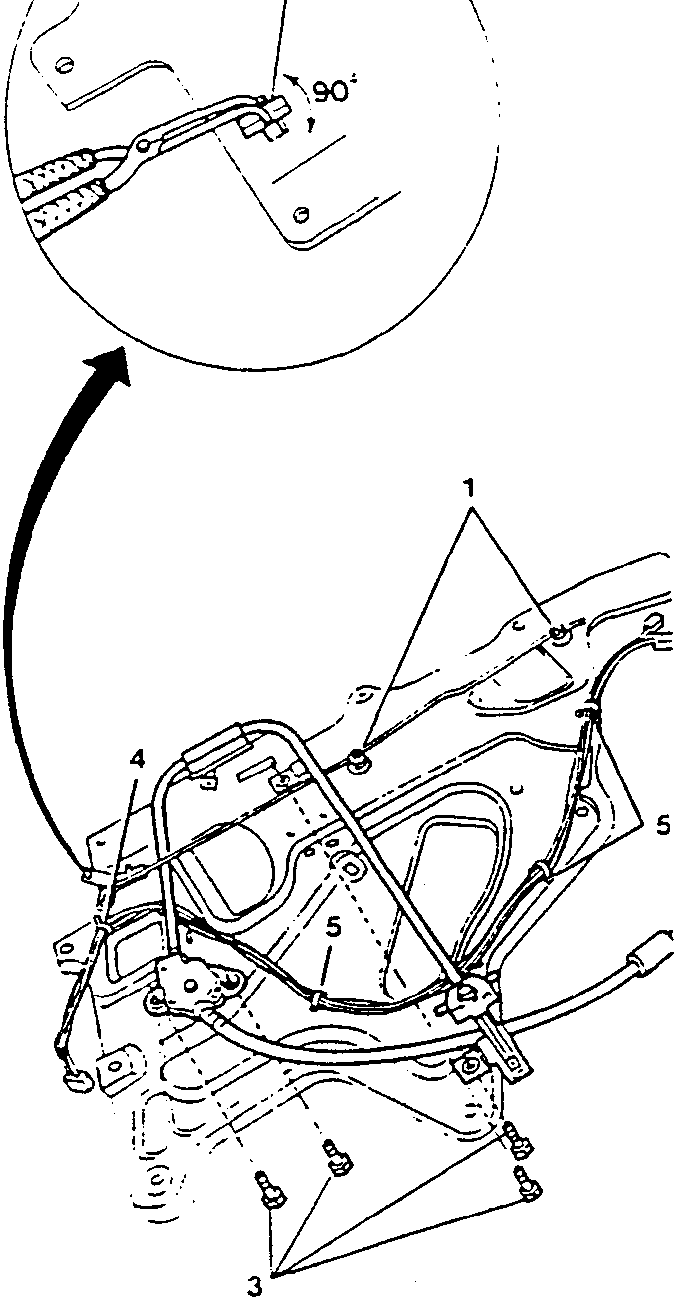

2. Rotate the retaining pin of the rod articulation by 90° using a suitable pair of pliers and remove the rod.
3. Disconnect (models with power windows) the window raising motor power supply connector.
4. Loosen the screws securing the window raising device to the frame and separate it from the frame.
5. Cut the clamp securing the wiring to the frame.
6. Disconnect the three attachments securing the wiring to the door frame by rotating them 90°.

To refit, reverse the procedure followed for removal and observe the following:

• For the refitting of components dealt with in other pages of this or other groups, refer to the relevant procedures and advice (see: PANEL, FRAME).

1. Part 1
2. Part 2
3. Part 3
4. Part 4
5. Part 5
