Alfa Romeo 155 Factory Service Manual (1992-1998)42 · Electrical 26 – Heating, ventilation and air conditioning
42 · Heating & A/C

FUNCTIOnAL DESCRIPTION (page 2 of 3)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
FUNCTIOnAL DESCRIPTION
Electrical 26 – Heating, ventilation and air conditioningFUNCTIOnAL DESCRIPTION · page 2 of 3

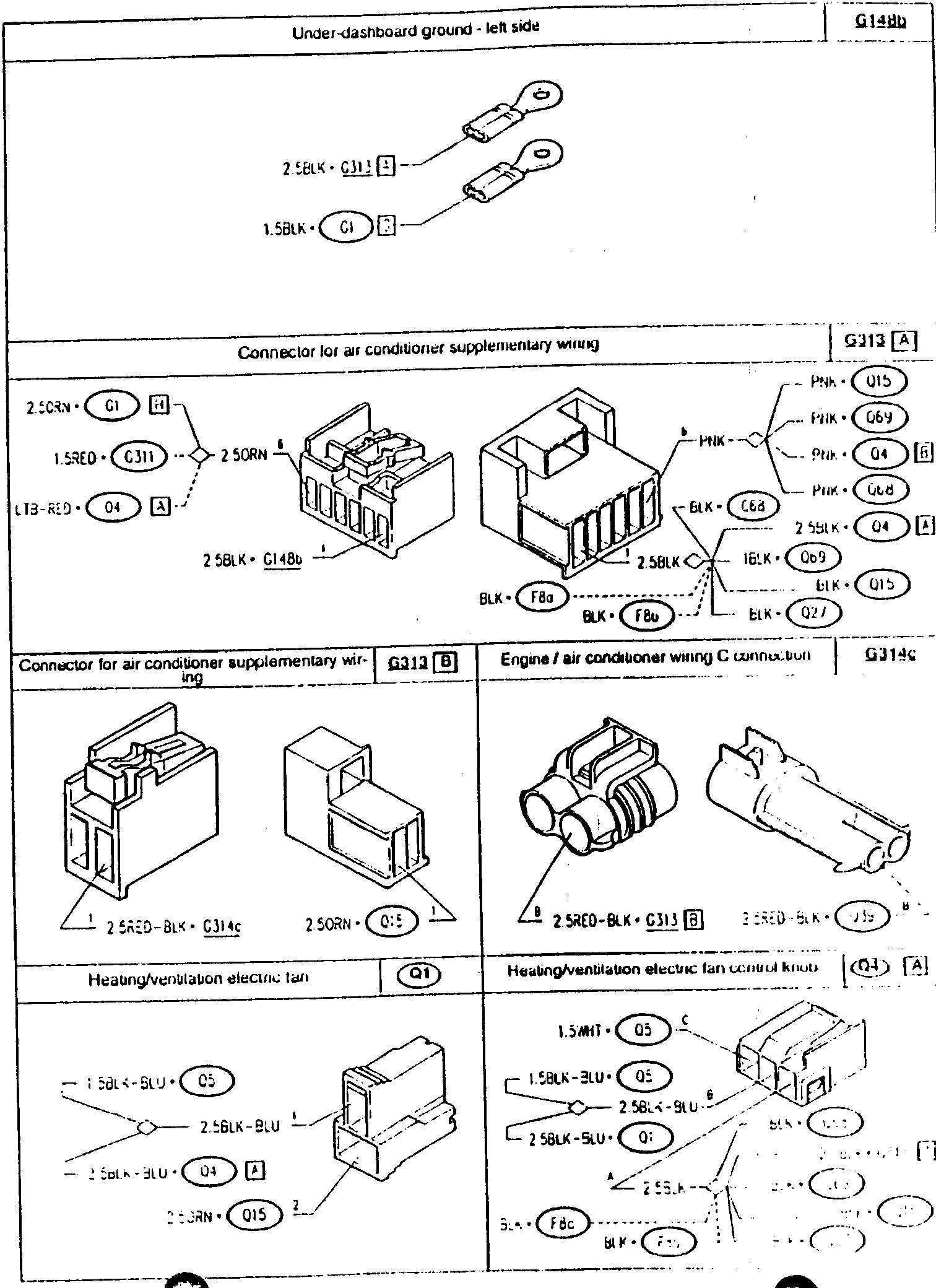

Under-dashboard ground - left side

Under-dashboard ground - left side diagram showing two connectors with wire labels 2.5BLK-G311 and 1.5BLK-G1

G148b

Connector for air conditioner supplementary wiring

Connector for air conditioner supplementary wiring diagram showing multiple connectors with wire labels such as 2.5CRN-G1, 1.5RED-G311, LT3-RED-04, 2.5BLK-G148b, BLK-F8a, BLK-F8u, etc.

G313 A

Connector for air conditioner supplementary wiring

Connector for air conditioner supplementary wiring diagram showing multiple connectors with wire labels such as 2.5RED-BLK-G314c, 2.5ORN-Q15, etc.

G313 B

Engine / air conditioner wiring C connection

Engine / air conditioner wiring C connection diagram showing two connectors with wire labels such as 2.5RED-BLK-G313 B, 2.5RED-BLK-Q15, etc.

G314c

Heating/ventilation electric fan

Heating/ventilation electric fan diagram showing a connector with wire labels such as 1.5BLK-BLU-Q5, 2.5BLK-BLU-Q3, 2.5ORN-Q15, etc.

Q1

Heating/ventilation electric fan control knob

Heating/ventilation electric fan control knob diagram showing a connector with wire labels such as 1.5MHT-Q5, 1.5BLK-BLU-Q5, 2.5BLK-BLU-Q1, 2.5BLK-BLU-Q3, etc.

Q4 A
