Electrical systemRefitting

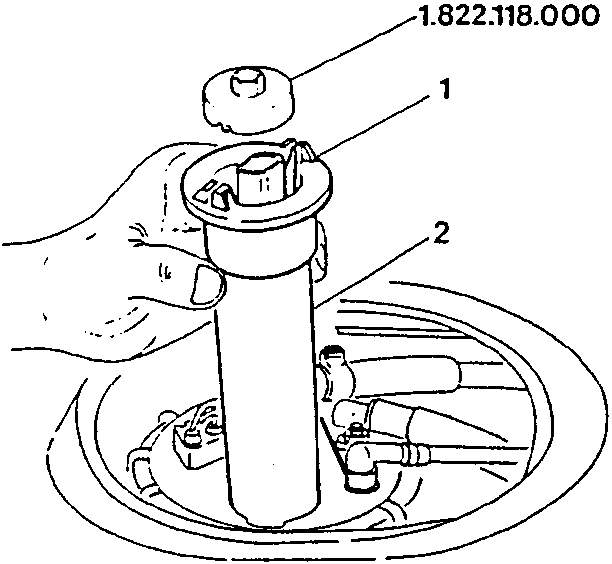

  1. Loosen the ring-nut using tool No. 1.822.118.000.
  2. Remove the sender.
Diagram showing hand loosening a ring nut with tool 1.822.118.000 and removing a sender from a cylindrical component.
  1. Ring-nut
  2. Sender

Refitting

To refit, reverse the procedure followed for removal.

CONTROLLED DAMPING SUSPENSION SOLENOID VALVES

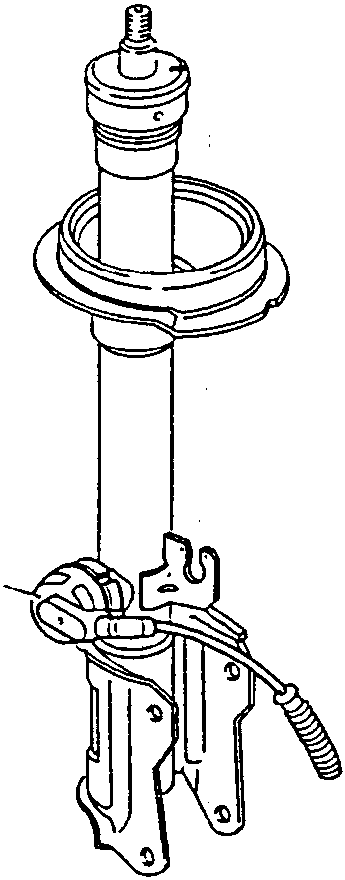

  • If one of the solenoid valves installed on the shock absorbers is inefficient (E) replace the entire shock absorber (see: REPAIR INSTRUCTIONS - MECHANICAL UNITS - GROUP 21 and GROUP 25).
Diagram showing a shock absorber with a solenoid valve marked (E).
