Removal
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- "handbrake on" indicator switch & stoplight switch › Removal
Electrical systemRemoval

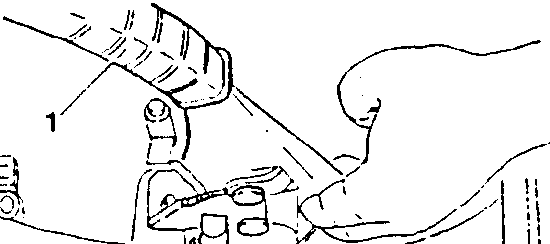

Removal
- Remove the tunnel covering (see: GROUP 66).
- Pull the handbrake on to its maximum position.
- Disconnect the electrical connector and loosen the two screws securing the switch.
- Free the switch from its housing.
- Switch
- Screw
- Housing
Refitting
[symbol] To refit, reverse the procedure followed for removal.

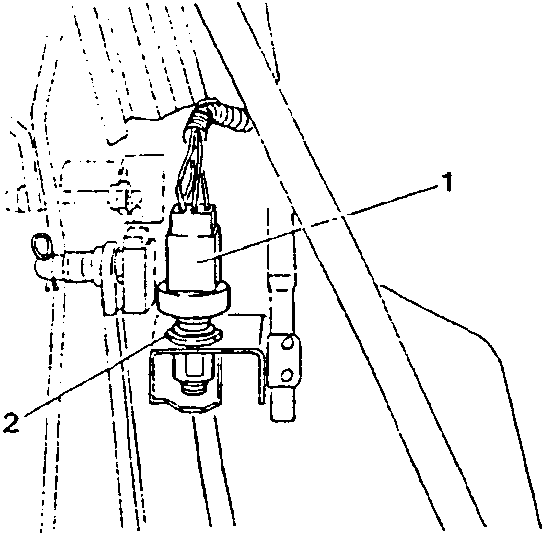

STOPLIGHT SWITCH
Removal
- Disconnect the electrical connector.
- Rotate the switch through 90° anticlockwise and remove it by pulling upwards.
- Switch
- Screw
Refitting
[symbol] To refit, reverse the procedure followed for removal.
