Reversing light switch & luggage compartment light switch › Removal
Electrical systemRemoval

Removal

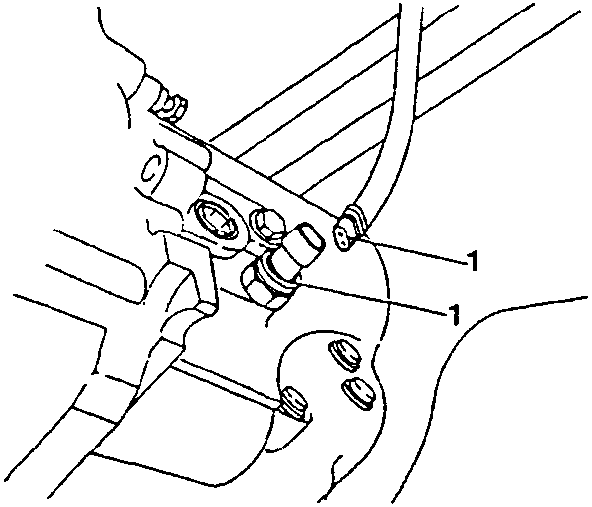

  • The switch is located on the gearbox and access can only be gained when the vehicle is raised on a lift.
  1. Disconnect the electrical connector; unscrew and remove the switch.
Diagram showing electrical connector disconnection and switch removal

Refitting

To refit, reverse the procedure followed for removal.

LUGGAGE COMPARTMENT LIGHT SWITCH

Removal

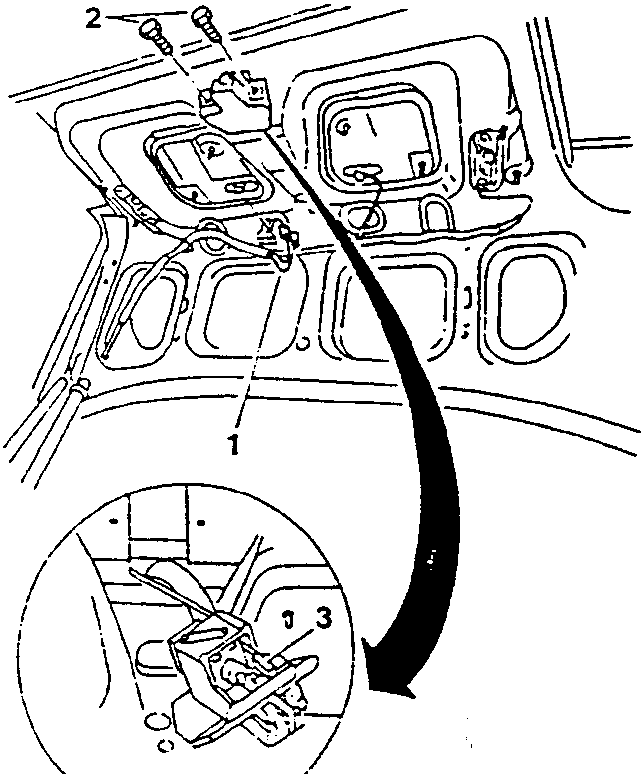

  1. Disconnect the two electrical connectors located behind luggage compartment light switch.
  2. Loosen the two boot lid retaining screws.
  3. Remove the switch.
Diagram showing removal of luggage compartment light switch with boot lid screws

Refitting

To refit, reverse the procedure followed for removal.
