Removal

Removal

• If a fault is found in the front door switch the entire lock device must be replaced.
• Remove the door panel (see: GROUP 55) and laterally detach the cellophane.

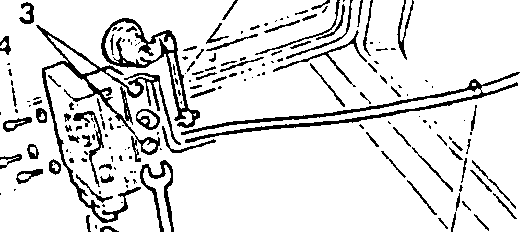

1. Cut the clamp securing the lock control rod to the body.
2. Disconnect the lock rod from the lock device.
3. Using tool No. 1.823.015.000, remove the two buttons securing the lock device to the body.
4. Together with the washers, loosen and remove the three screws securing the lock device to the door.
5. Disconnect the two connectors of the door open and Check Panel wiring from the lock device and remove the device together with the rod.

7.1 ÷ 9 Nm
(0.72 ÷ 0.92 kgm)

Refitting

To refit, reverse the procedure followed for removal.

Supplementary Indications for refitting

• Before reconnecting the electrical connectors check that the cables are correctly inserted in them.
• Before refitting the panel, check that the retaining buttons are not damaged.
• After refitting adjust the locks if necessary.
• Tighten the screws to the correct torque.
