FRONT HEADLIGHT

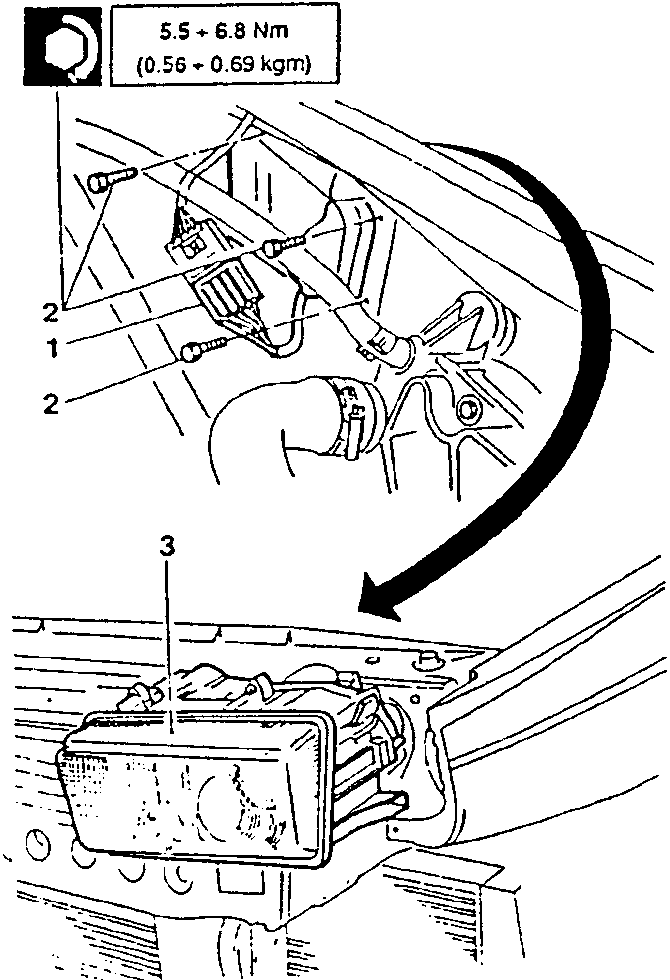

Removal

• Remove the front direction indicator (see: FRONT DIRECTION INDICATOR).

1. Disconnect the headlight power supply connector.
2. Loosen the three screws securing the headlight to the headlight support crossmember.
3. Remove the headlight by withdrawing the centering pins from their seats.

5.5 ÷ 6.8 Nm
(0.56 ÷ 0.69 kgm)

Refitting

To refit, reverse the procedure followed for removal.

Supplementary indications for refitting

• For components and/or parts dealt with in other parts of this or other groups, refer to the relative warnings and procedures regarding refitting (see: FRONT DIRECTION INDICATOR).
• Before reconnecting the electrical connector, check that the cables have been correctly inserted.
• When refitting, tighten the screws to the correct torque.

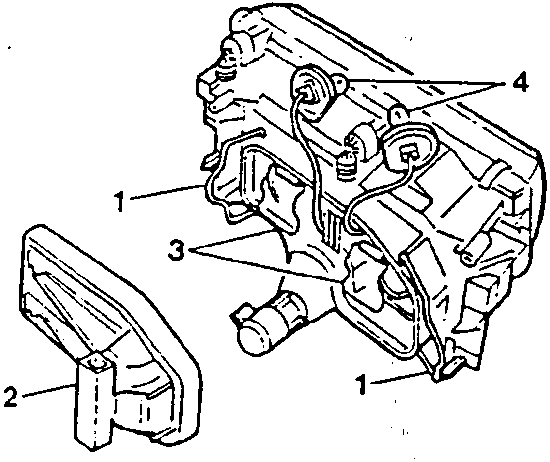

REPLACING BULB OF FRONT HEADLIGHT

1. Working from the engine compartment unhook the rear protection mountings.
2. Remove the rear protection.
3. Free the spring securing the bulb-holder and remove the bulb-holder.
4. Withdraw the bulb.

• Fit a new bulb and install by reversing the order followed for removal. Check that the electrical cables are correctly inserted in their connectors.

Never touch the glass of the headlight bulbs. If touched, clean with methylated spirit.
