Alfa Romeo 155 Factory Service Manual (1992-1998)58 · Electrical system
58 · Electrical

Removal

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Front foglight unit › Removal
Electrical systemRemoval

Removal

  1. Loosen the two retaining screws.
  2. Remove the headlight and disconnect the electrical connectors.
  3. To adjust the direction of the beam, act on the adjustment screw.
Front foglight unit with numbered parts 1, 2, 3
  1. Part 1
  2. Part 2
  3. Part 3

Refitting

To refit, reverse the procedure followed for removal.

ADJUSTING BEAM OF DIPPED-BEAM HEADLIGHT

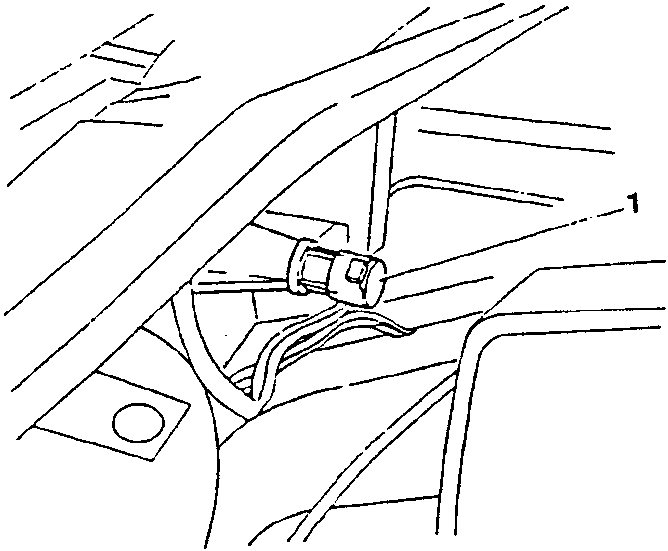

  1. Rotate the headlight position variator either right or left when the vehicle is fully loaded or completely empty.

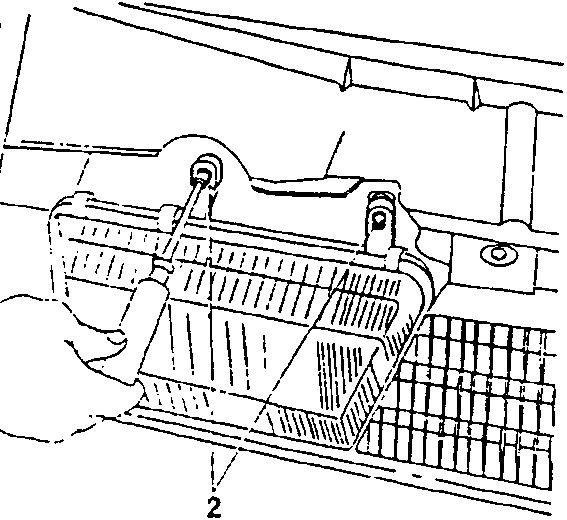

  2. Act on the two upper screws to direct the beam of the dipped-beam headlight.
Headlight position variator adjustment
Illustrates removal of glove box latch mechanism using screwdriver
