Electrical systemFront direction indicator

FRONT DIRECTION INDICATOR

Removal

  1. Disconnect the indicator power supply connector.
  2. Loosen the screw securing the front direction indicator.
  3. Remove the indicator by acting on the relevant lever.

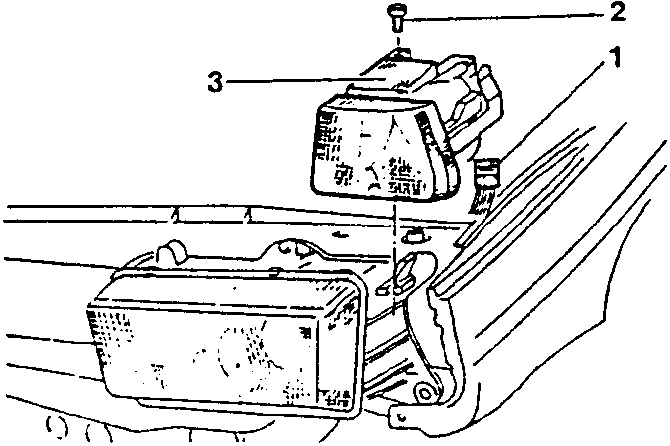

Front direction indicator with labeled parts 1, 2, and 3

Refitting

To refit, reverse the procedure followed for removal.

Supplementary indications for refitting

  • Before reconnecting the electrical connectors check that the cables are fitted in correctly.

SIDE DIRECTION INDICATORS

Removal

  1. Remove the side direction indicator from the front bumper by pressing downwards and pulling outwards.
  2. Withdraw the bulb-holder from the direction indicator.
  3. Withdraw the bulb by pulling on the glass.
Side direction indicator with labeled parts 1, 2, and 3

Refitting

To refit, reverse the procedure followed for removal.
