Removal

Removal

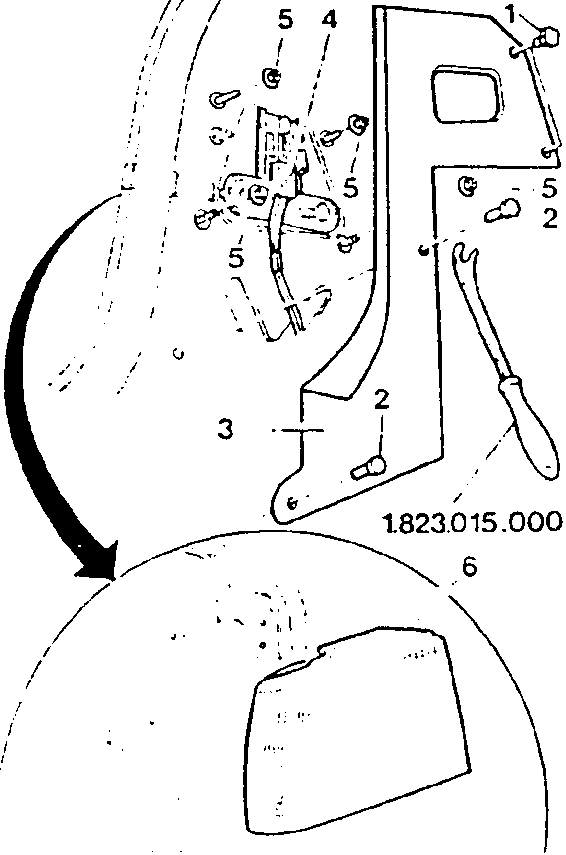

Working from inside the luggage compartment, proceed as follows:

1. Loosen the two plastic nuts of the luggage compartment rear interior trim.
2. Using tool No. 1.823.015.000, disconnect the plastic button of the luggage compartment rear interior trim.
3. Remove the luggage compartment rear interior trim.
4. Disconnect the rear light unit power supply connector.
5. Loosen the four nuts securing the rear light assembly.
6. Remove the rear light assembly.

Refitting

To refit, reverse the procedure followed for removal.

REPLACING BULBS OF REAR LIGHT ASSEMBLY

1. Loosen the two plastic nuts of the luggage compartment inner rear trim and lift the trim to gain access to the bulb-holder unit.
2. Disconnect the rear light unit power supply connector.
3. Unhook and remove the bulb-holder unit.
4. Withdraw the bulb.

Fit a new bulb and reinstall by reversing the procedure followed for removal. Check that the electrical cables are correctly fitted into the power supply connector.
