Removal

Removal

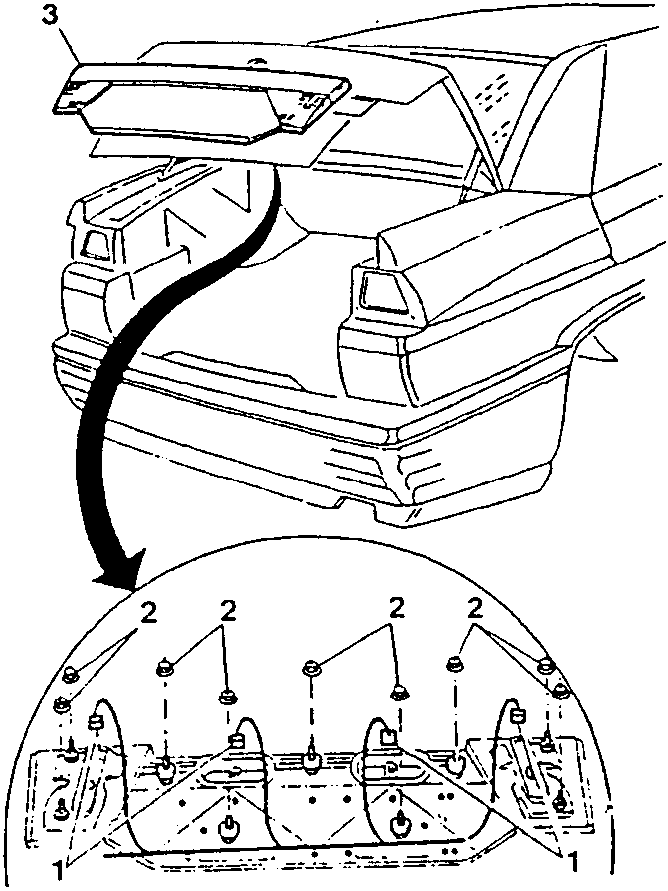

Operating from within the luggage compartment lid proceed as follows:

• Remove remove the boot lid trim (see GROUP 66 - BOOT LID TRIM).

1. Disconnect the four rear light assembly power supply connectors.
2. Loosen the nine nuts securing the rear light assembly to the boot lid.
3. Remove the rear light assembly.

Refitting

To refit, reverse the procedure followed for removal.

Supplementary indications for refitting

• Before reconnecting the electrical connectors check that the cables are correctly inserted in them.

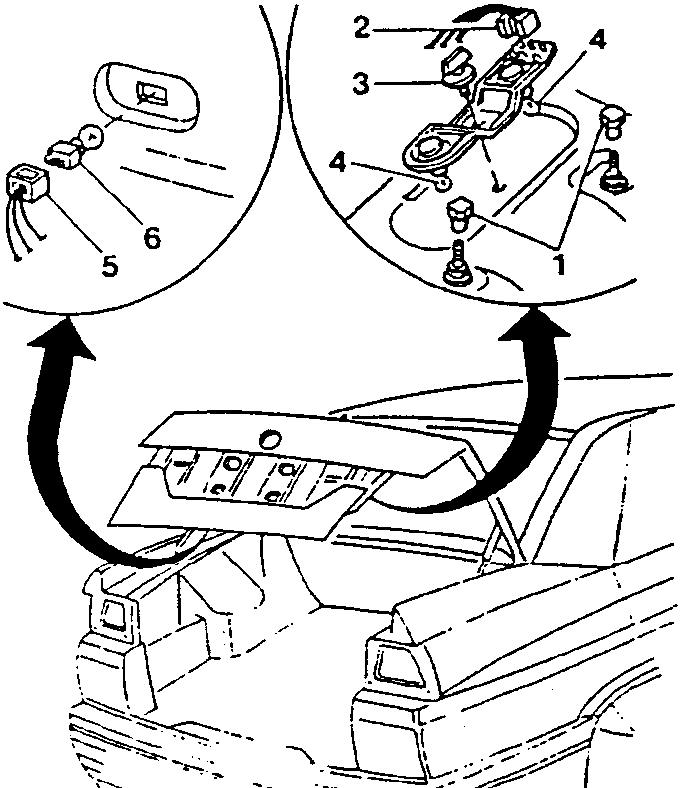

REPLACING BULBS OF REAR LIGHT ASSEMBLY AND NUMBERPLATE HOLDER.

Working from the inside of the luggage compartment lid, proceed as follows:

• Reversing light and rear foglight bulbs.

1. Loosen the two plastic nuts of the boot lid trim and lift it to gain access to the bulb-holders.
2. Disconnect the bulb-holder power supply connection.
3. Loosen the plastic fitting of the bulb-holder and remove the bulb-holder.
4. Withdraw the bulb.

Fit a new bulb and install by reversing the procedure followed for removal. Check that the electrical cables are correctly inserted in the power supply connector.

• Numberplate holder bulb.

1. Withdraw the bulb-holder from its seating.
2. Substitute the bulb and fit the bulb-holder back into its seating.
