Removal

Removal

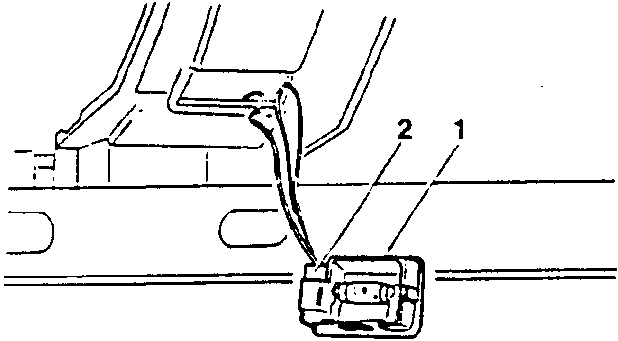

1. From behind, press on the light unit located on the central part of the luggage compartment.
2. Disconnect the connector and remove the light unit.

Refitting

To refit, reverse the procedure followed for removal.

REPLACING THE BULB OF THE LUGGAGE COMPARTMENT LIGHT

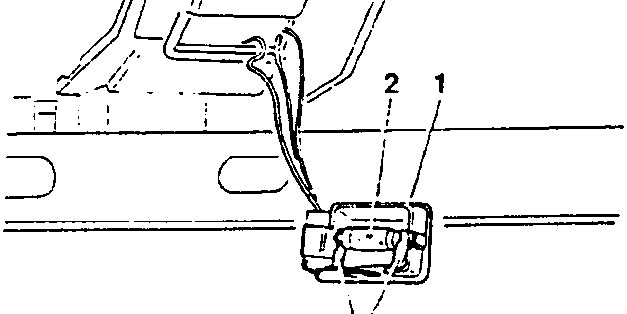

1. Remove the clear plastic strip by applying leverage to the slot on the right-hand side.
2. Remove the tubular bulb by pulling it outwards from the contacts.
   Insert a new bulb checking that it is correctly positioned and firmly fixed.
   Refit the clear plastic strip by pressing it into its seating.
