Alfa Romeo 155 Factory Service Manual (1992-1998)58 · Electrical system
58 · Electrical

Removal

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Glovebox light and switch › Removal
Electrical systemRemoval

Removal

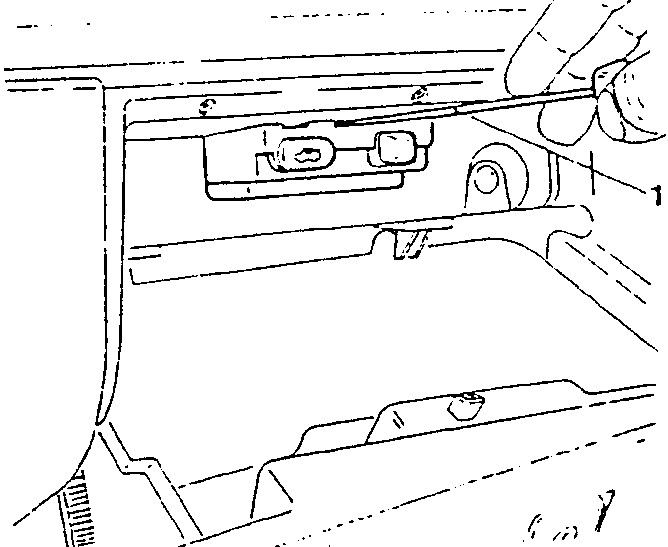

  1. Apply leverage with a thin bladed screwdriver.
Illustration showing hand applying pressure to remove a plastic strip from the glovebox light assembly.

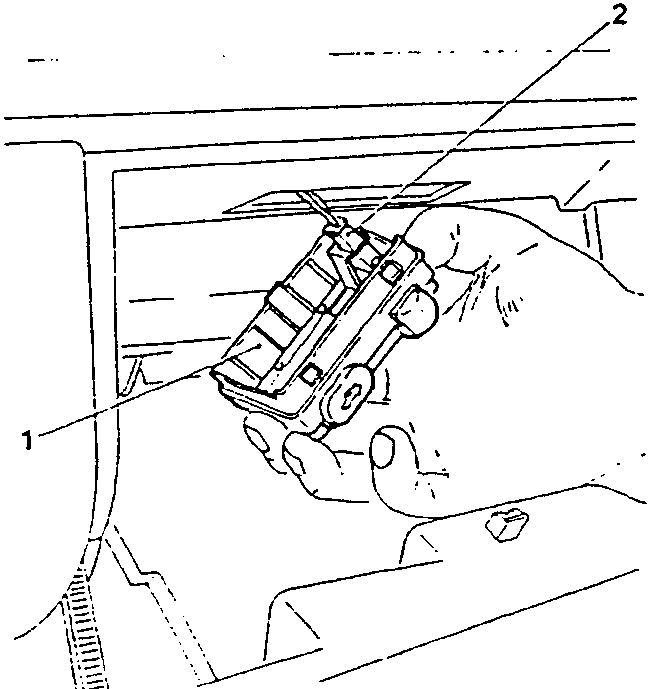

  1. Remove the light unit from its seating.
  2. Disconnect the electrical connector.
Illustration showing hand removing the light unit from its mounting bracket.

Refitting

To refit, reverse the procedure followed for removal.

REPLACING THE BULB OF THE GLOVEBOX LIGHT

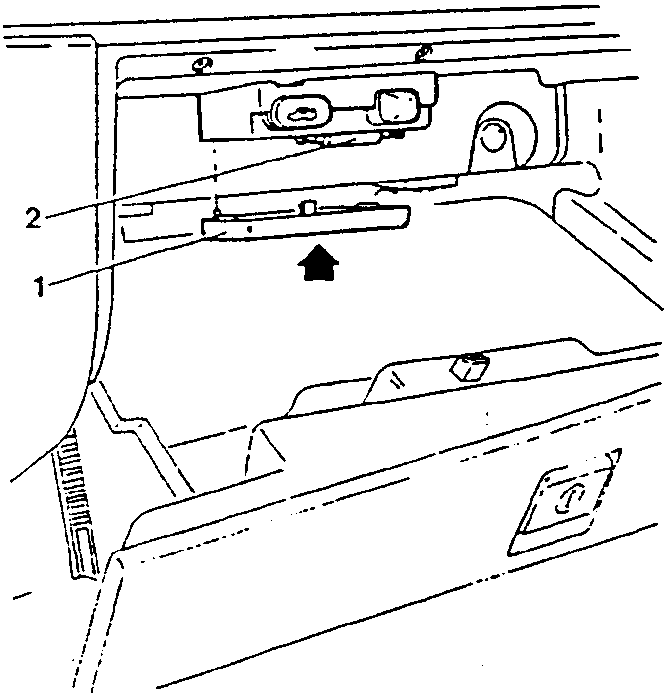

  1. Remove the clear plastic strip by exerting a light pressure on the front and rotating it downwards.
  2. Remove the tubular-type bulb by pulling it outwards and freeing it from the contacts. Insert a new bulb and check that it is correctly positioned and fixed firmly in place. Refit the clear plastic strip by first inserting the rear edge and then pressing on the front edge until the retaining tabs click home.
Illustration showing the clear plastic strip being reinstalled with an arrow indicating the direction of pressure to engage the retaining tabs.
