Removal

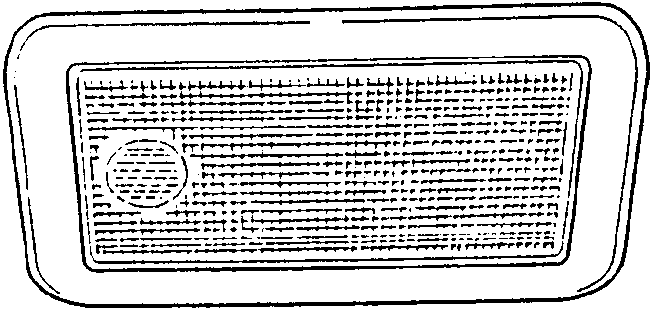

The rear lighting is composed of a central roof light which comes on automatically for a pre-set time when any of the doors are opened.

The roof light can be switched on and off manually by pressing the circular imprint on the clear plastic strip.

Removal

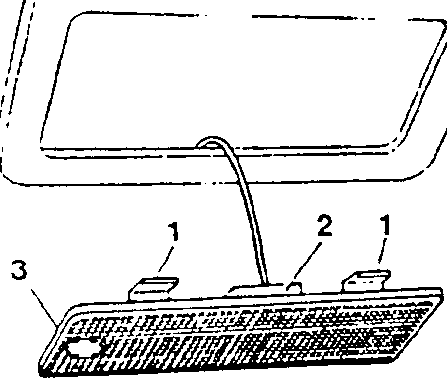

1. Using a thin-bladed screwdriver with a maximum thickness of 2 mm, press on the retaining tabs and detach the complete unit.
2. Disconnect the electrical connectors.
3. Remove the roof light.

Refitting

To refit, reverse the procedure followed for removal.

REPLACING THE BULBS OF THE REAR CENTRAL ROOF LIGHT

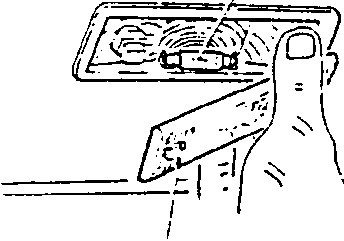

1. Remove the clear plastic strip by applying leverage to one of the sides.
2. Remove the cylindrical-type bulbs by pulling it outwards and freeing it from the lateral contacts. Insert a new bulbs ensuring that they are correctly positioned and firmly fixed between the two contacts. Refit the clear plastic strip by placing it in the correct position on one side and then pressing down the other until the retaining tabs click home. Check that everything is correctly positioned and test the light by pressing the circular imprint on the plastic strip.
