Electrical systemFunctioal description
FUNCTIOAL DESCRIPTION

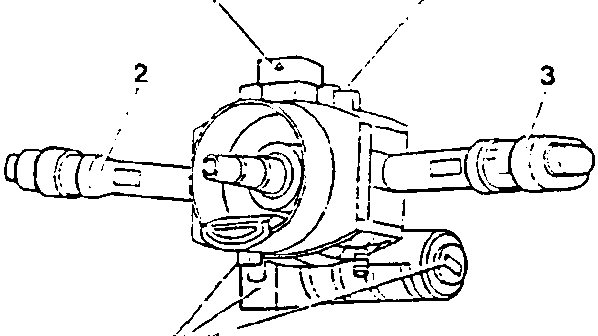

The controls relative to the following services are located on a single support on the steering column under the steering wheel:
- Ignition switch and steering lock.
- General control lever for external lights, direction indicators, rear toglights.
- General control lever for windscreen wiper/washers (headlight washer optional), heated rear window and door mirror defroster.
- Hazard warning light switch.
- Instrument panel lighting rheostat.
IGNITION SWITCH
Detail showing ignition switch

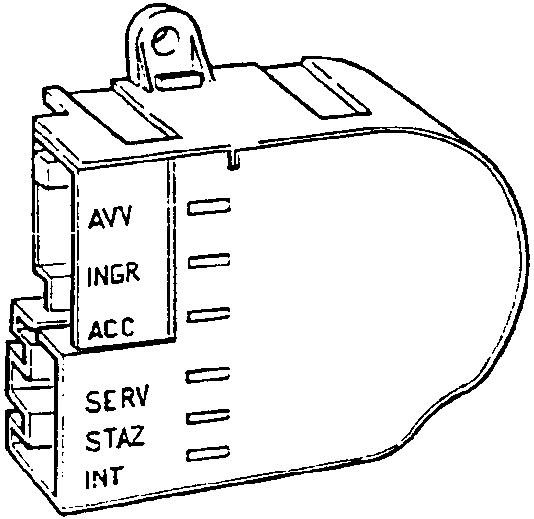

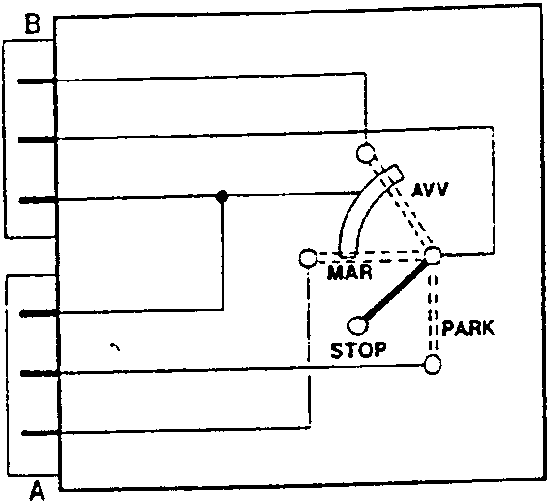

Rotating the key in the ignition switch the six blades (marked by a code) terminating in two connectors are connected in accordance with the table given on the following page.
