Removal
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Front power window switches › Removal
Electrical systemRemoval
Removal
- Loosen the screw securing the door panel moulding.
- Withdraw the moulding from the panel and disconnect the connectors from the power window control buttons.
- Remove the switches from the moulding by applying leverage with a thin-bladed screwdriver.

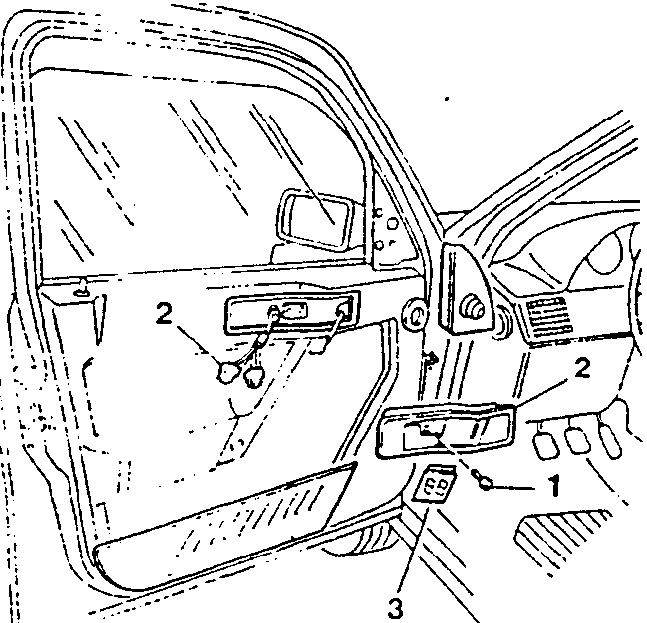

- Switch
- Connectors
- Moulding
Refitting
To refit, reverse the procedure followed for removal.
