Removal
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Sunroof switch & door mirror adjustment double switch › Removal
Electrical systemRemoval
Removal

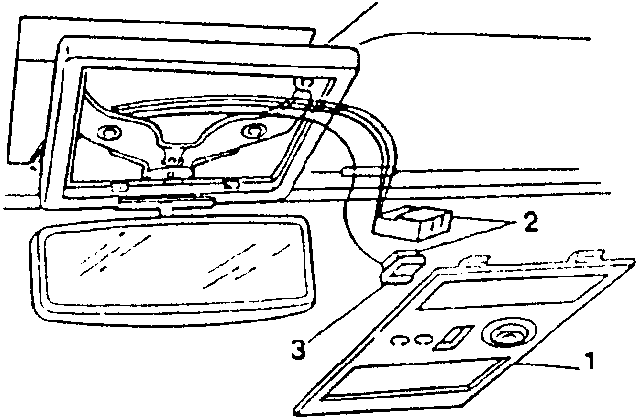

- Apply leverage with a thin-bladed screwdriver to remove the front central roof light.
- Disconnect the electrical connectors.
- Remove the sunroof control switch.
- A. Open roof
- B. Close roof
Refitting
To refit, reverse the procedure followed for removal.
DOOR MIRROR ADJUSTMENT DOUBLE SWITCH
Removal
- Loosen the screw securing the door panel moulding.
- Withdraw the moulding from the panel and disconnect the electrical connectors of the door mirror adjustment button and the power window connectors.
- Remove the switch from the moulding by applying leverage with a thin-bladed screwdriver.
Refitting
To refit, reverse the procedure followed for removal.
