Removal

Removal

• Remove the door panel (see: GROUP 55) and laterally remove the cellophane.
• Remove the door frame (see: GROUP 49) and place on a bench.

1. Disconnect the window from the frame by acting on the button fixing it to the support using a pair of pliers.
2. Cut the clamp holding the window raising device to the frame.

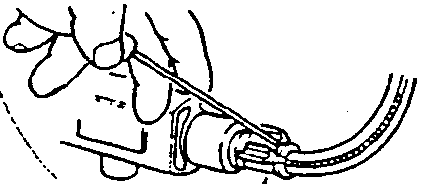

3. Disconnect the window raising motor supply connector.
4. Loosen the two screws securing window raising device to the frame.
5. Using a screw driver, free the two supports and separate the window raising device from the frame.
6. Remove the cellophane protection.
7. Cut the clamp securing the the wiring to the frame.
8. Free the five clamps securing the wiring to the door frame by rotating them through 90°.

Refitting

To refit, reverse the procedure followed for removal.

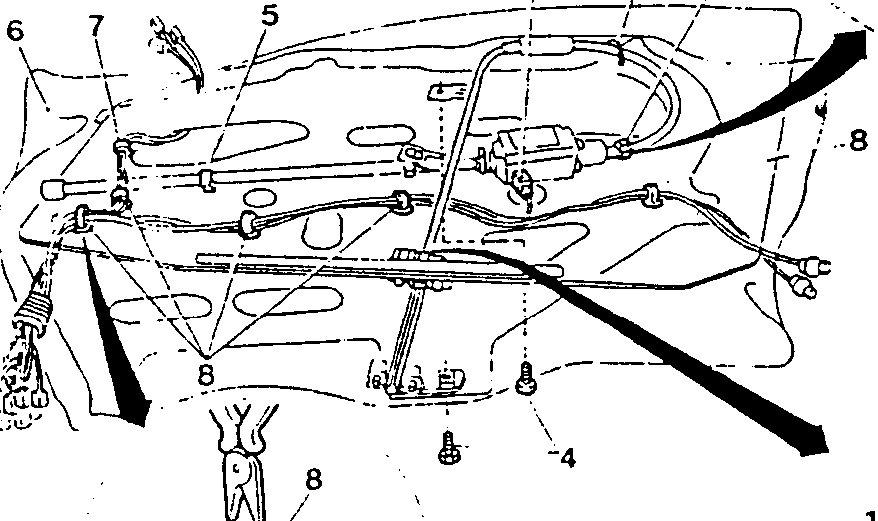

1. Window raising device
2. Support
3. Wiring
4. Screw
5. Clamp
6. Cellophane protection
7. Button
8. Connector
