Alfa Romeo 155 Factory Service Manual (1992-1998)58 · Electrical system
58 · Electrical

Removal

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Sunroof motor & electric fuel pump › Removal
Electrical systemRemoval · page 1 of 3

Removal

  • After removing the front central roof light perform the following operations in order:
  1. Loosen the three screws securing the roof to the frame.
  2. Disconnect the electrical connector.
  3. Remove the motor.

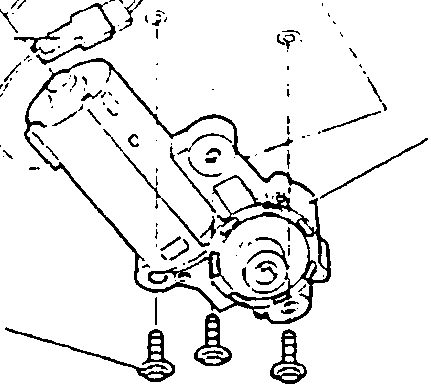

Sunroof motor with three screws and electrical connector

To refit, reverse the procedure followed for removal.

ELECTRIC FUEL PUMP

Removal

  1. Disconnect the electrical connector from the fuel level gauge sender (TELEVEL).

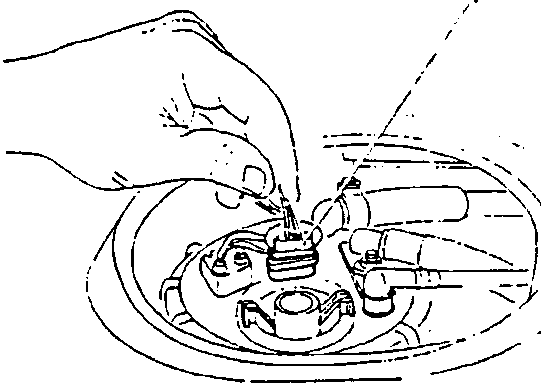

Hand disconnecting electrical connector from fuel level gauge sender
  1. Loosen the ring-nut using tool No. 1.822.118.000.
  2. Remove the sender.

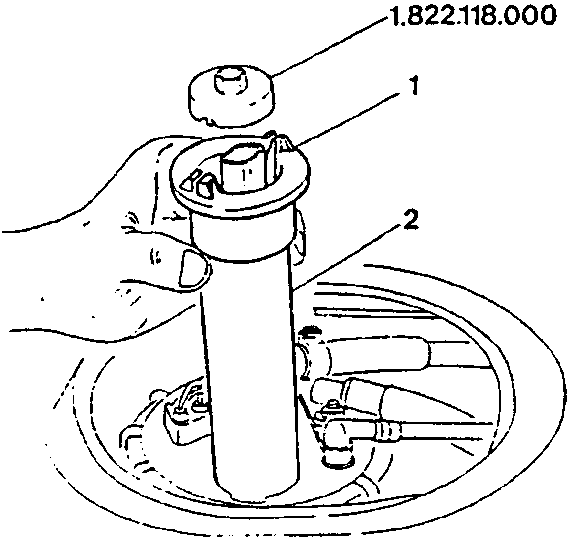

Hand loosening ring-nut with tool 1.822.118.000 on fuel sender
