Alfa Romeo 155 Factory Service Manual (1992-1998)58 · Electrical system
58 · Electrical

Removal (page 2 of 3)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Sunroof motor & electric fuel pump
Electrical systemRemoval · page 2 of 3

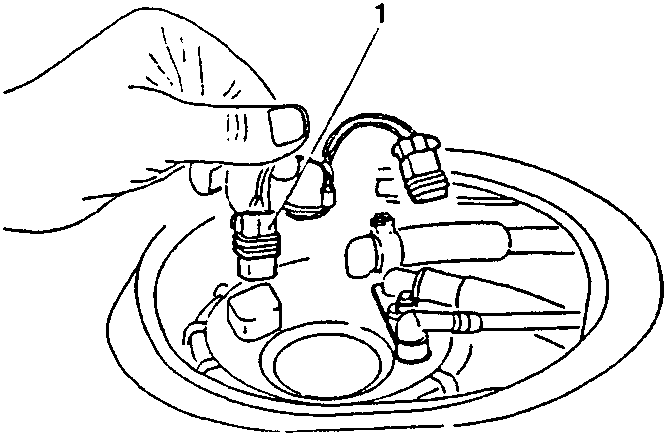

  1. Disconnect the connector.
Hand disconnecting a connector from a fuel tank component

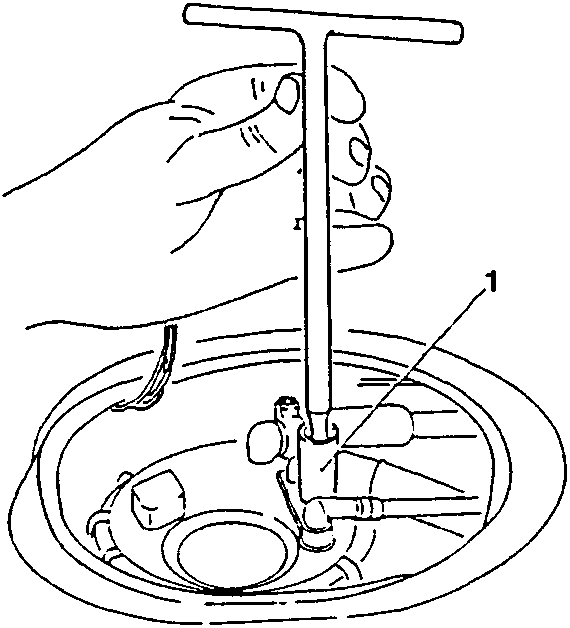

  1. Loosen the nut securing the fuel tank delivery and return hoses clip.
Hand using a T-handle wrench to loosen a nut on a fuel tank component

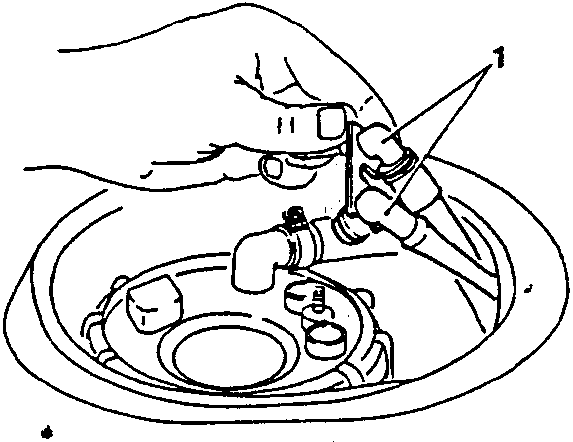

  1. Remove the hoses.
Hand removing a hose from a fuel tank component

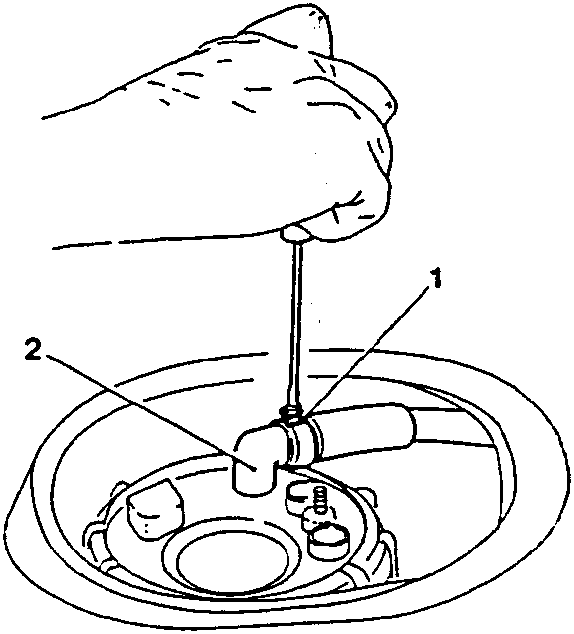

  1. Loosen the metal clamp securing the breather pipe.
  2. Remove the pipe.
Hand loosening a metal clamp on a breather pipe
