Alfa Romeo 155 Factory Service Manual (1992-1998)58 · Electrical system
58 · Electrical

Removal (page 3 of 3)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Sunroof motor & electric fuel pump
Electrical systemRemoval · page 3 of 3
  1. Loosen the ring-nut securing the pump using tool No. 1.821.167.000 and a 19 mm spanner.
Illustration showing hands loosening a ring-nut with a tool labeled 1.821167.000, pointing to part 1 inside a circular housing

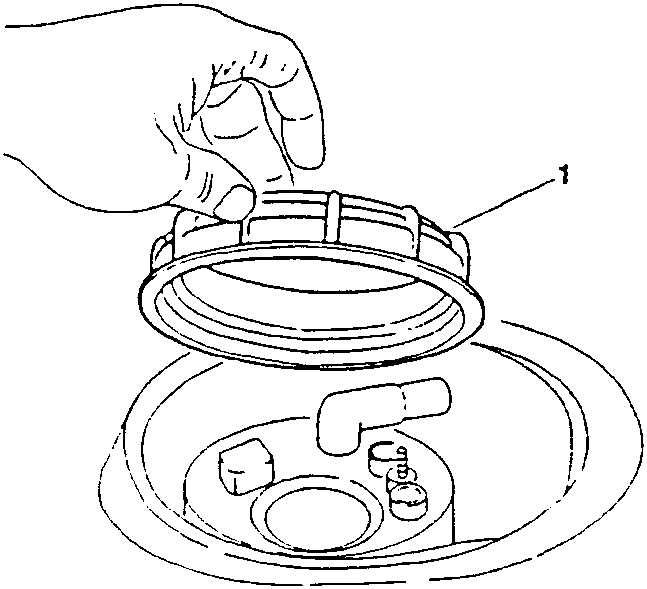

  1. Remove the ring-nut.
Illustration showing hands removing a ring-nut labeled 1 from a circular housing

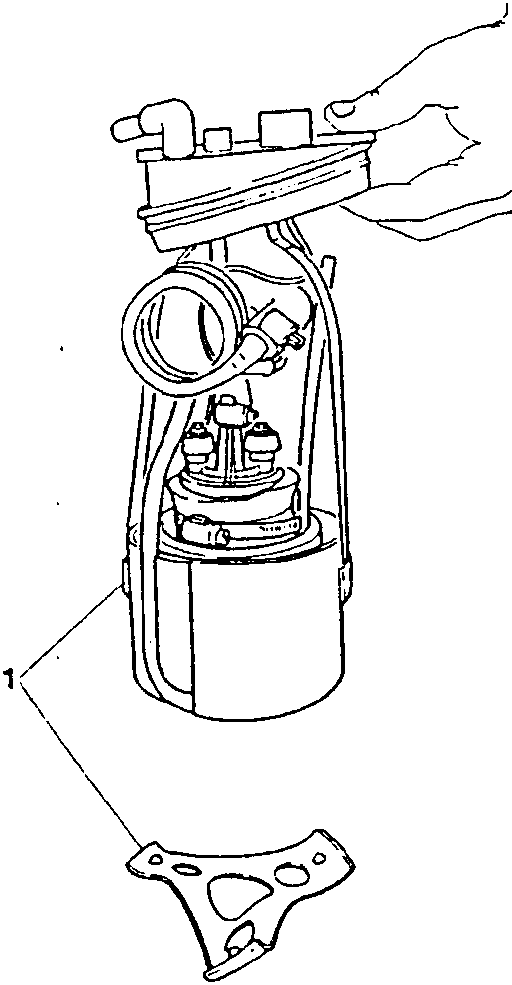

  1. Remove the electric pump and rubber gasket.
Illustration showing hands removing an electric pump and rubber gasket, with part 1 indicated by a line to the pump body

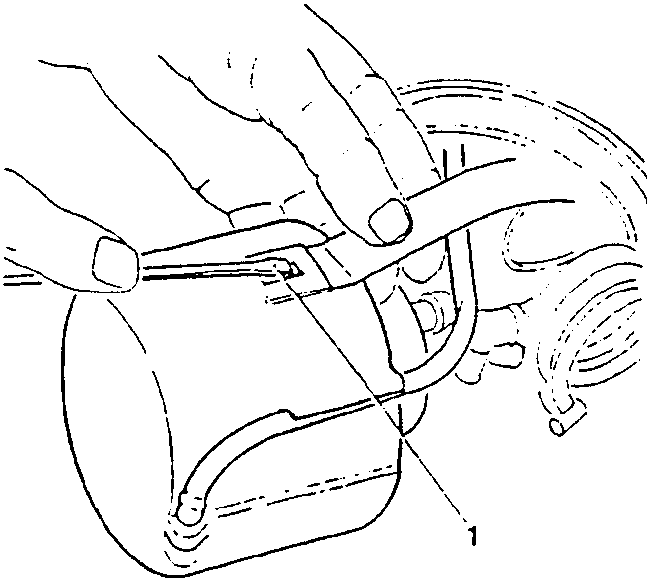

  1. Free the container housing the pump from the metal levers by pressing on the retaining clips with a screwdriver.
Illustration showing hands using a tool to press on retaining clips on a container housing, with part 1 indicated by a line to the clip
