Engine cooling (Twin Spark)Disassembly

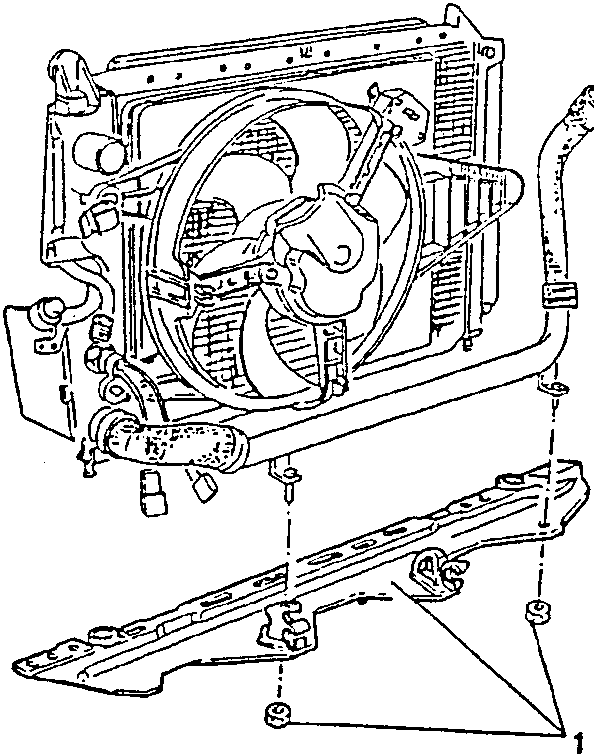

1. Unscrew the two nuts and remove the lower cross-member.

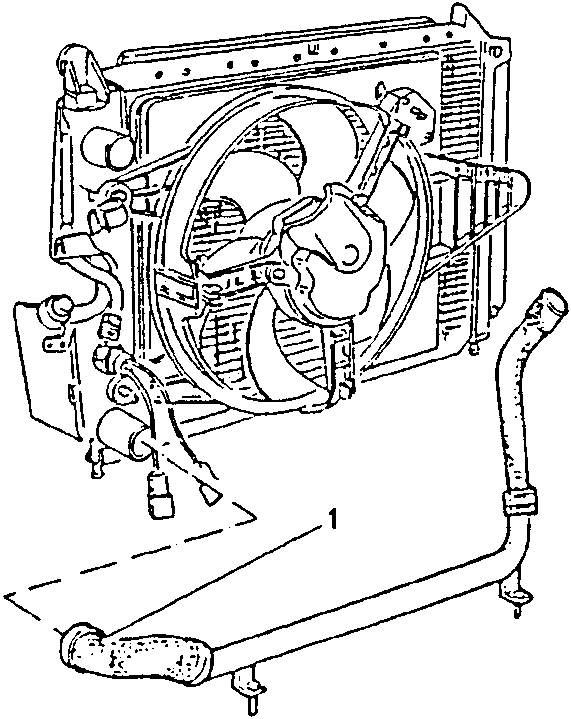

1. Disconnect the engine coolant to water pump return hose from the radiator.

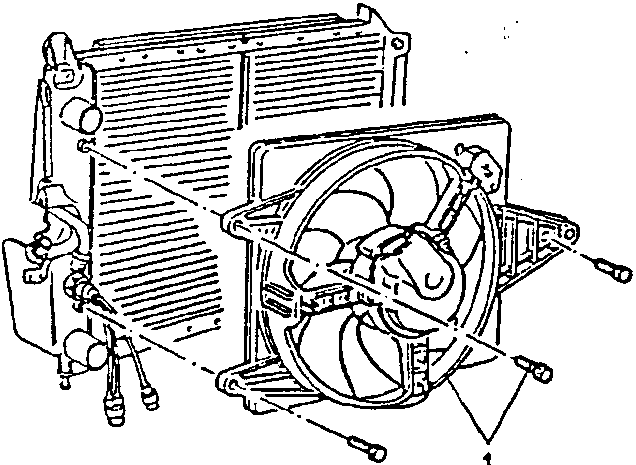

1. Unscrew the three screws and remove the complete electric fan.

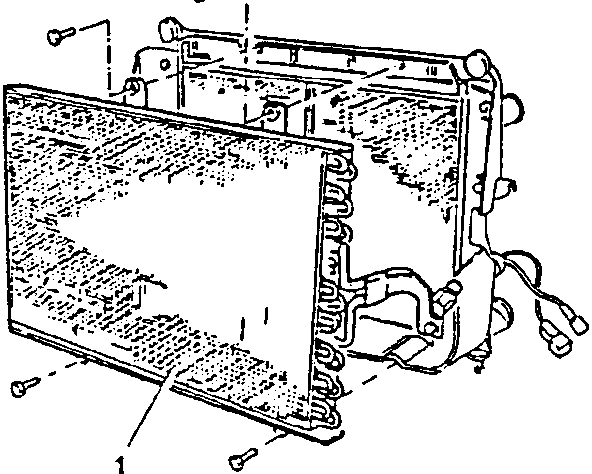

1. Unscrew the four screws and remove the air conditioning condenser.
