Removal/refitting (page 4 of 4)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Radiator
Engine cooling (Twin Spark)Removal/refitting · page 4 of 4

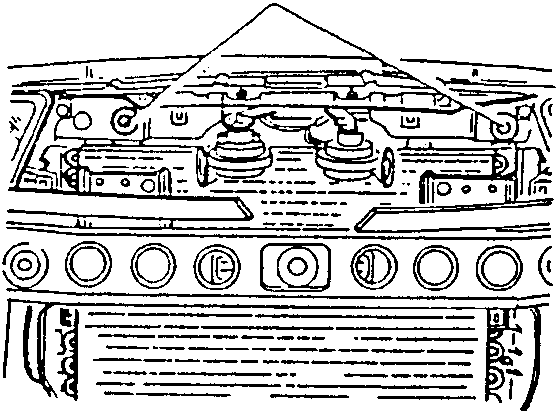

1 Unscrew the two upper screws securing the radiator.

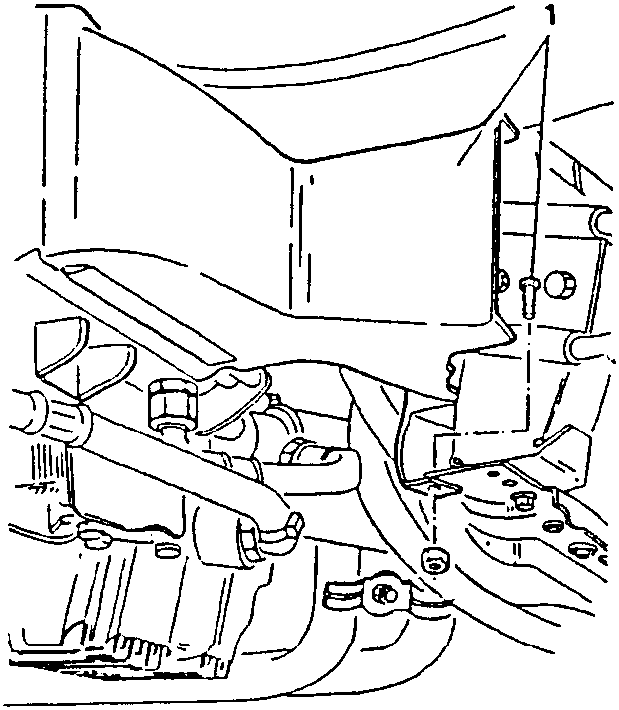

- Unscrew the screw securing the oil radiator conveyor to the lower crossmember.
- Withdraw the two power steering system oil hoses from the clamps on the lower crossmember.

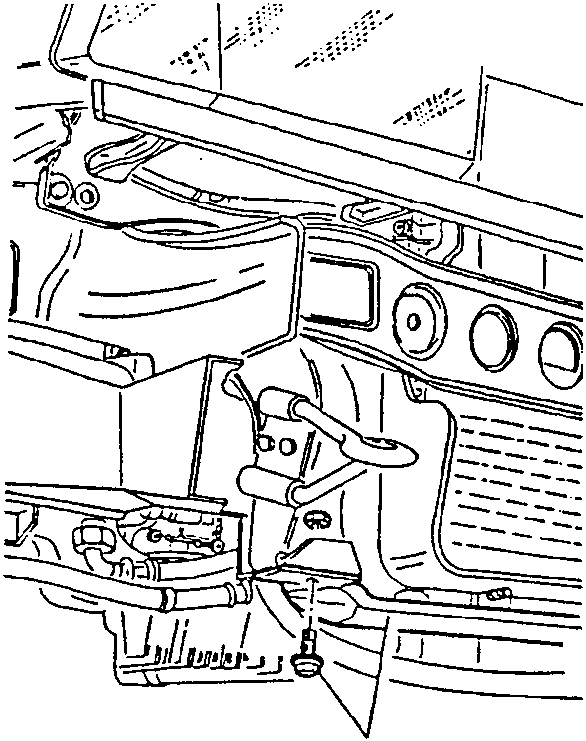

- Unscrew the two screws securing the lower crossmember to the body.

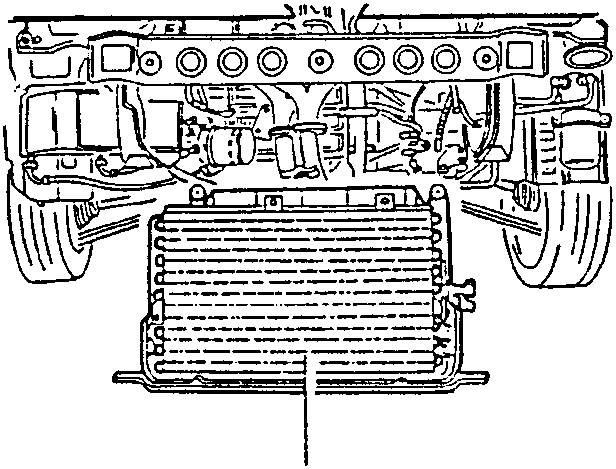

- Remove the radiator, condenser, electric fan and lower crossmember assembly by pulling it downwards.
