Engine cooling (Twin Spark)Removal/refitting · page 2 of 4
  1. Disconnect the engine coolant from thermostatic cup delivery sleeve from the radiator.

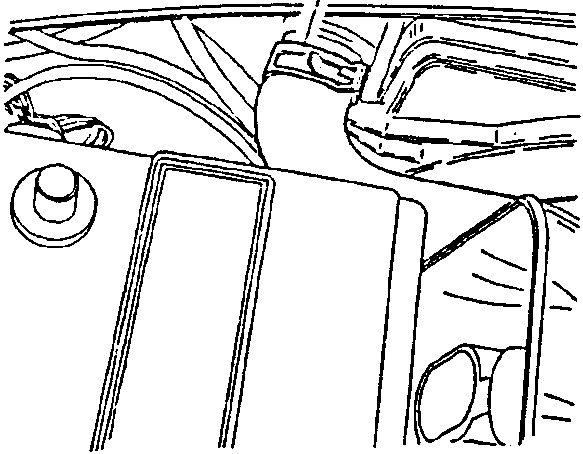

Close-up of engine coolant connection point
Close-up of engine coolant connection point
  1. Disconnect the electrical connection from the engine cooling fan.

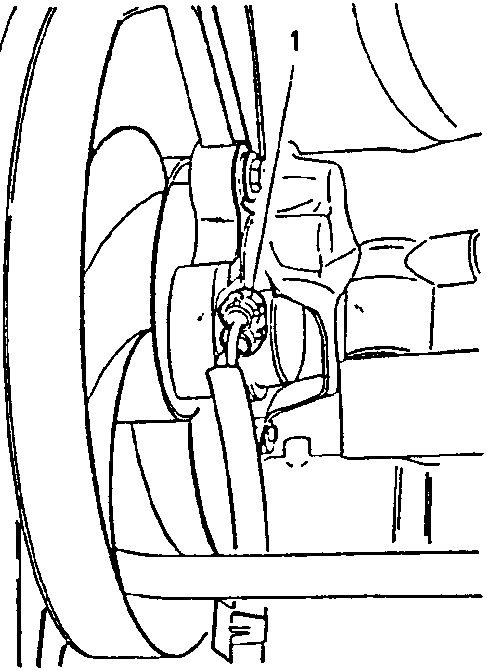

Close-up of engine cooling fan electrical connection
  1. Disconnect the two electrical connections from the electric fan control thermocontact.
    • Move the electrical wiring to one side after removing it from the clamps.

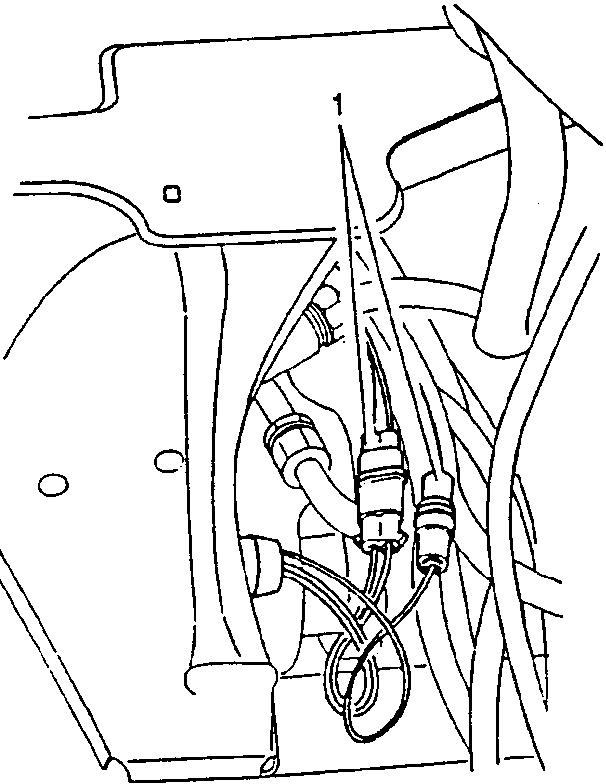

Close-up of electric fan control thermocontact electrical connections
  1. Disconnect the electrical connection of the electric fan resistance.

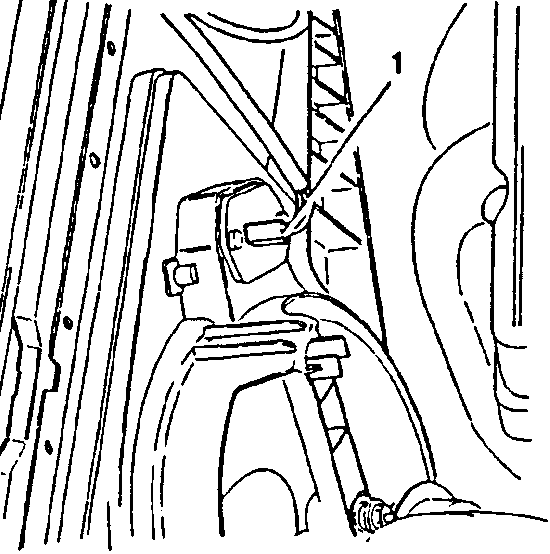

Close-up of electric fan resistance electrical connection
