Alfa Romeo 155 Factory Service Manual (1992-1998)06 · Engine cooling (Twin Spark)
06 · Engine

Removal/refitting (page 3 of 4)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Radiator
Engine cooling (Twin Spark)Removal/refitting · page 3 of 4

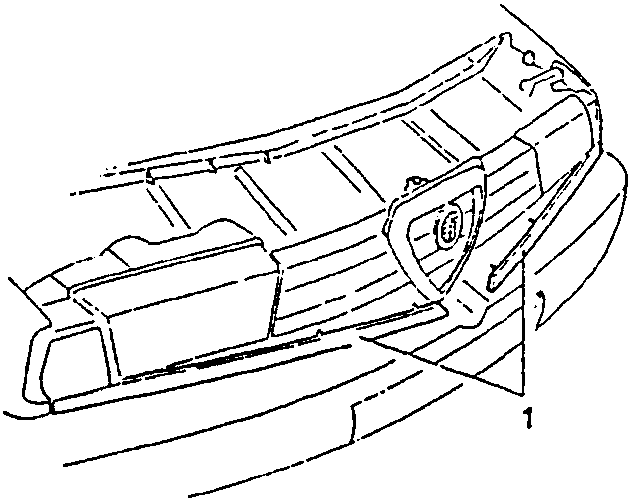

  1. Remove the central part of the finishing trim from the front grill.
Front grill with central trim being removed
  1. Remove the front grill (see GROUP 75).
Front grill removal view

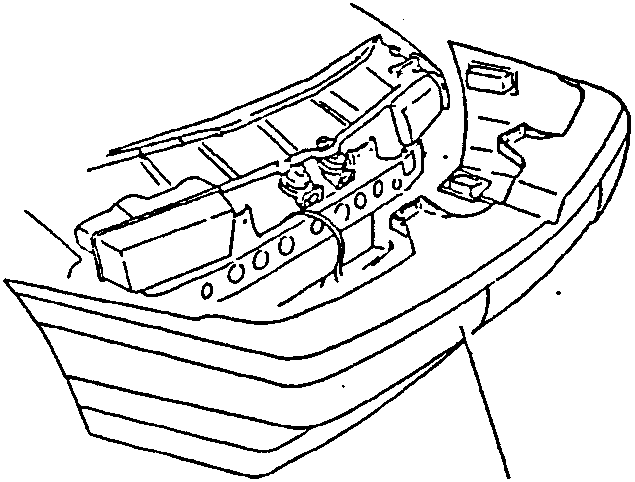

  1. Remove the front bumper (see GROUP 75).
Front bumper removal view
  • Raise the vehicle.

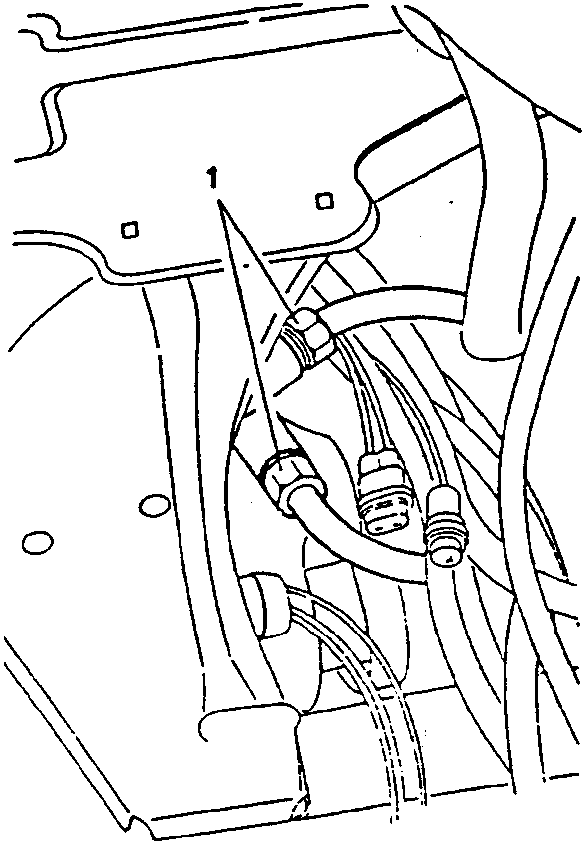

  1. Disconnect the two inlet and outlet connections carrying the freon from the air conditioning condenser.
Air conditioning condenser connections being disconnected
