Alfa Romeo 155 Factory Service Manual (1992-1998)10 · Engine cooling (V6)
10 · Engine

Disassembly (page 2 of 2)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Disassembly
Engine cooling (V6)Disassembly · page 2 of 2
  1. Remove the freon inlet union complete with pressure switch from the condenser.

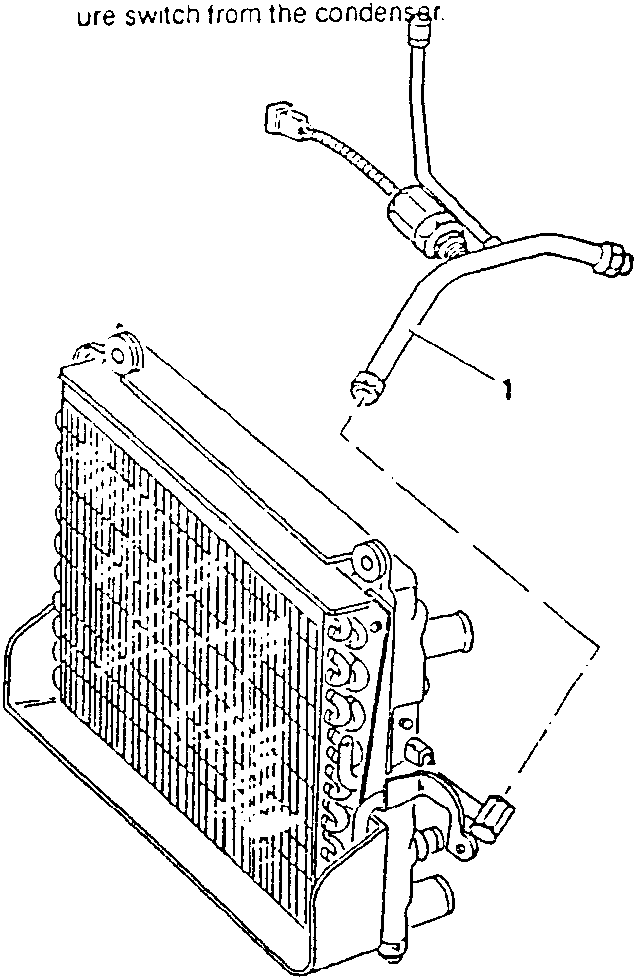

Condenser with freon inlet union and pressure switch
  1. Remove the electric fan cut-in thermocontact from the radiator.

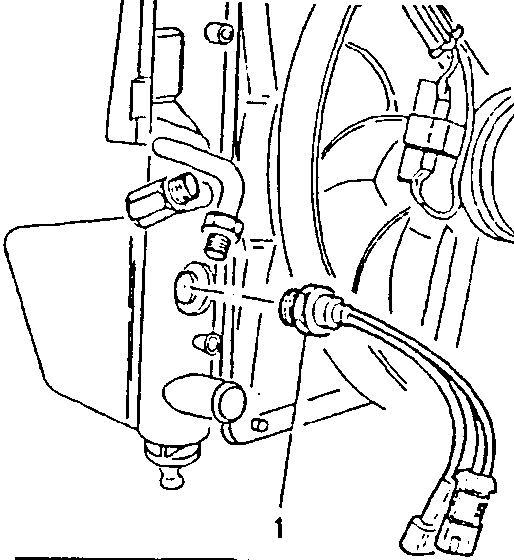

Radiator with electric fan cut-in thermocontact

6.5 ÷ 10.5 Nm
0.66 ÷ 1.07 kgm

  1. Remove the complete electric fan from the cooling radiator by unscrewing the four retaining screws.

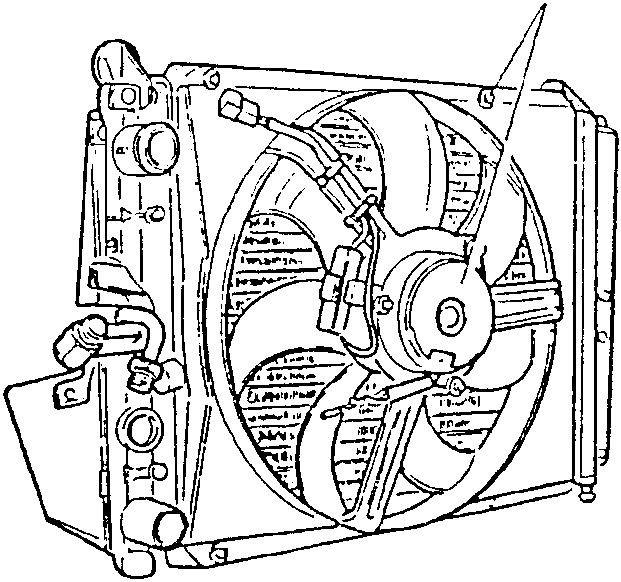

Electric fan attached to cooling radiator
  1. Unscrew the retaining screws and remove the air conditioning system condenser.
  2. Unscrew the retaining screws and separate the air conveyor from the radiator.

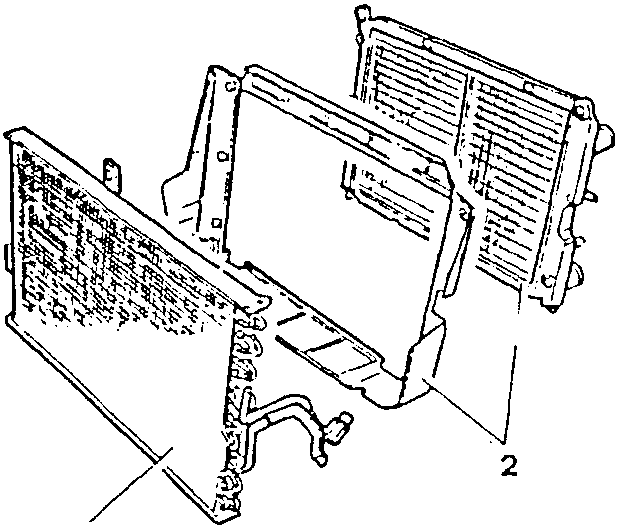

Air conditioning system condenser and air conveyor separated from radiator
