Engine cooling (V6)Removal/refitting · page 1 of 3
The two-speed electric cooling fan increases the radiator heat exchange capability.
A double threshold thermocontact, the first contact of which is set at 92°C and the second, by way of an additional resistance at 97°C, activates the fan at the two different speeds.
REMOVAL/REFITTING

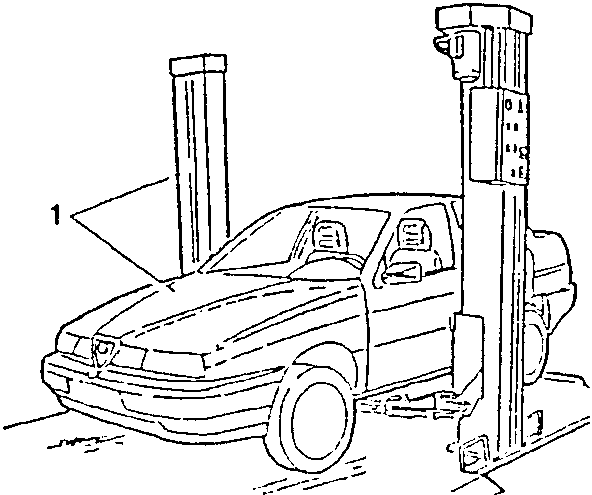

- Place the vehicle on a lift.
- Disconnect the negative cable from the battery.

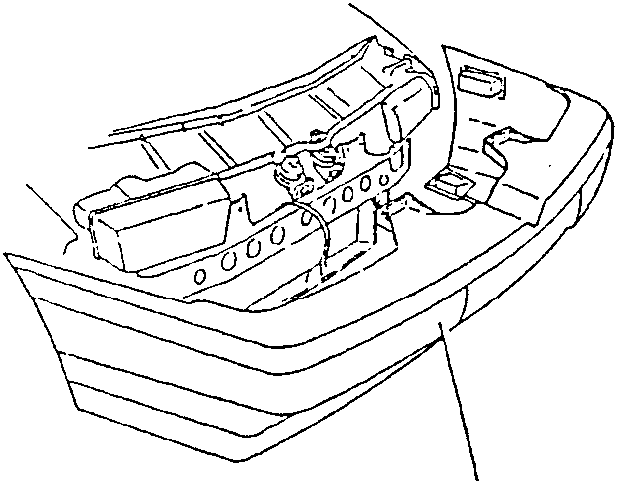

- Remove the front bumper (see GROUP 75).
- Unscrew the screw securing the relay box to the crossmember and temporarily move the box to one side.
