Removal/refitting (page 3 of 3)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Electric cooling fan

Engine cooling (V6)Removal/refitting · page 3 of 3

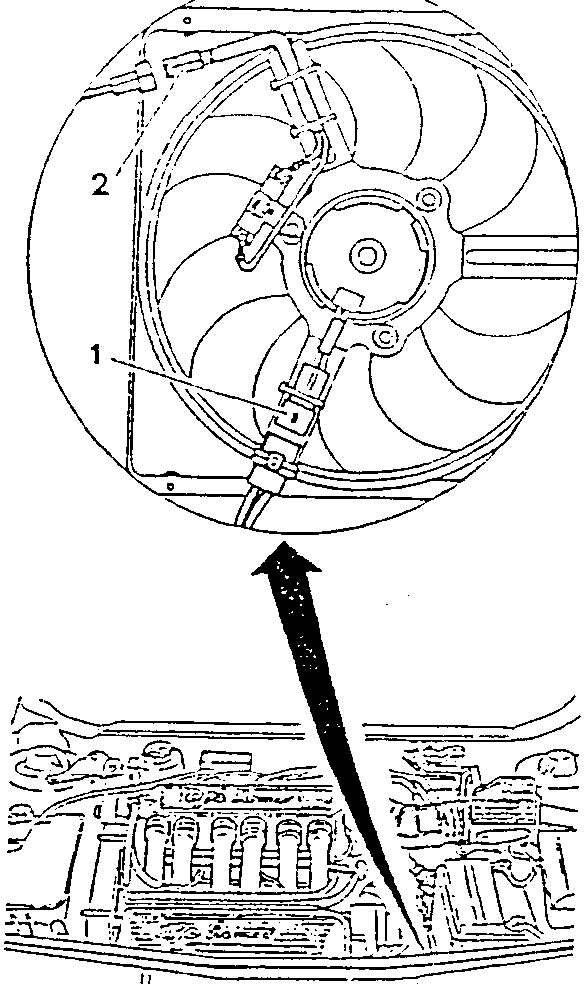

1. Disconnect the electrical connections from the electric cooling fan.
2. Disconnect the electrical connection from the fan resistance.

1. part 1
2. part 2

• Raise the vehicle.

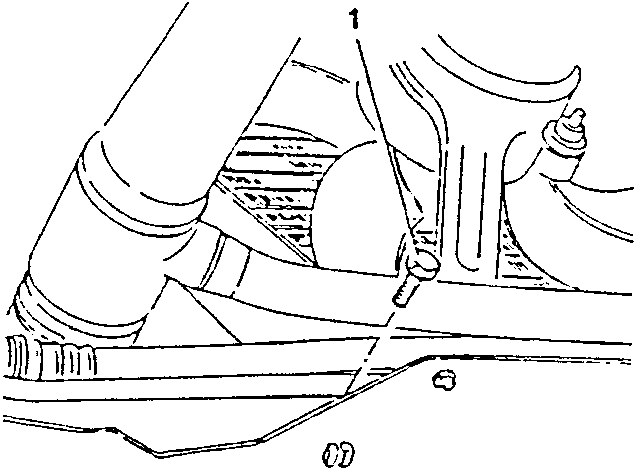

1. Unscrew the lower screws securing the electric fan.

• Lower the vehicle.

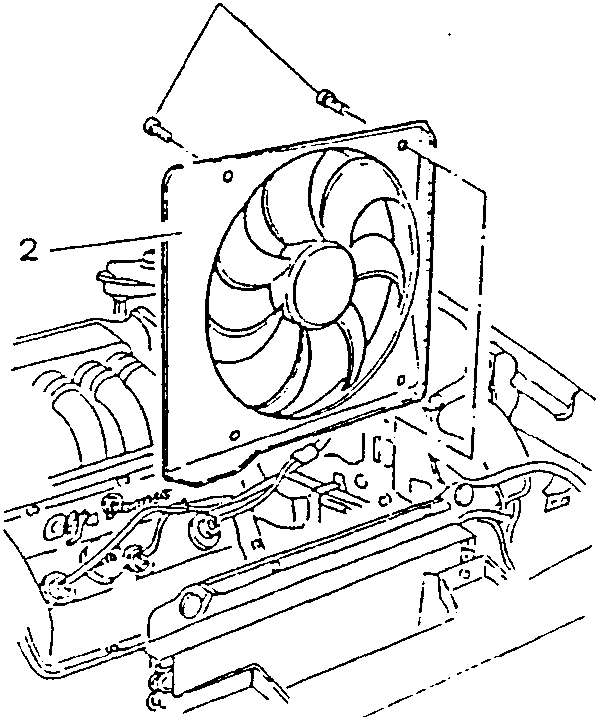

1. Unscrew the upper screws securing the fan.
2. Remove the complete fan.

1. part 1
2. part 2
