Disassembly

DISASSEMBLY

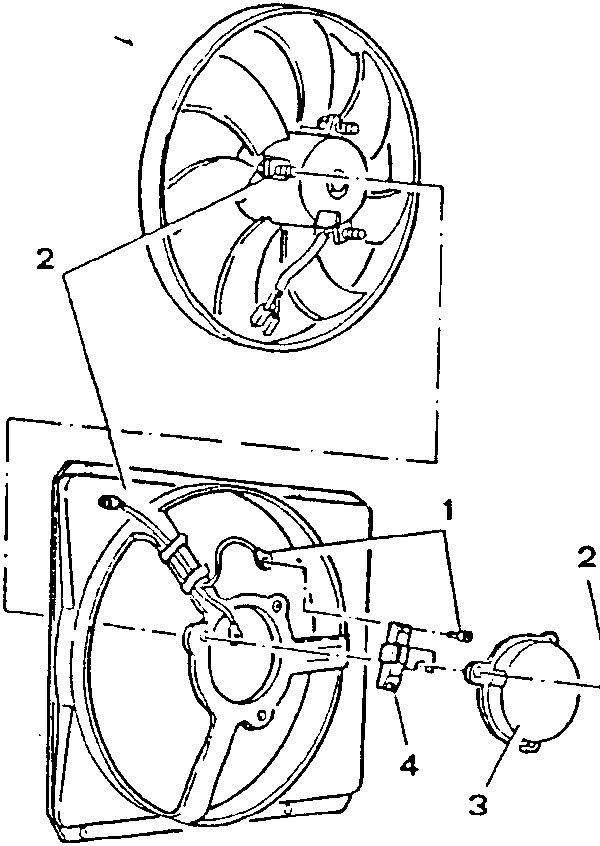

1. Disconnect the electrical cables from the additional resistance.
2. Unscrew the three nuts and separate the conveyor from the fan.
3. Remove the dustguard.
4. Remove the additional resistance.

1. Part 1: Fan
2. Part 2: Conveyor
3. Part 3: Additional resistance
4. Part 4: Dustguard

ELECTRIC COOLING FAN THERMOCONTACT

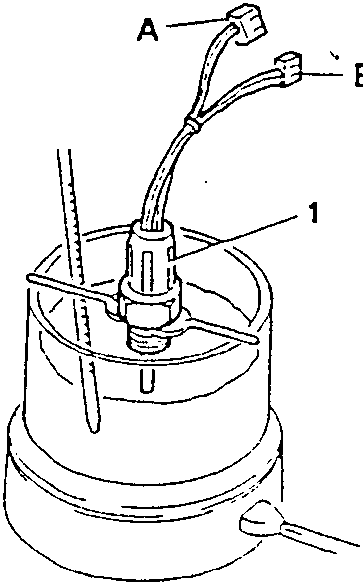

Check the setting of the thermocontact by operating as follows:

• Remove the thermocontact from the radiator.
• Hang the thermocontact in a container full of water and heat the water.
• Using a thermometer and a multimeter, check that the contact closes on the two pins (of connector A) at the 2nd speed cut-in temperature.
• In the same way check that the thermocontact closes between the pins of connector A and B at the 2nd speed cut-in temperature.

CAUTION
Neither the thermometer or the thermocontact must touch the bottom of the container.

If the correct values are not detected, replace the thermocontact.
