Alfa Romeo 155 Factory Service Manual (1992-1998)10 · Engine cooling (V6)
10 · Engine

Removal/refitting (page 2 of 3)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Radiator
Engine cooling (V6)Removal/refitting · page 2 of 3

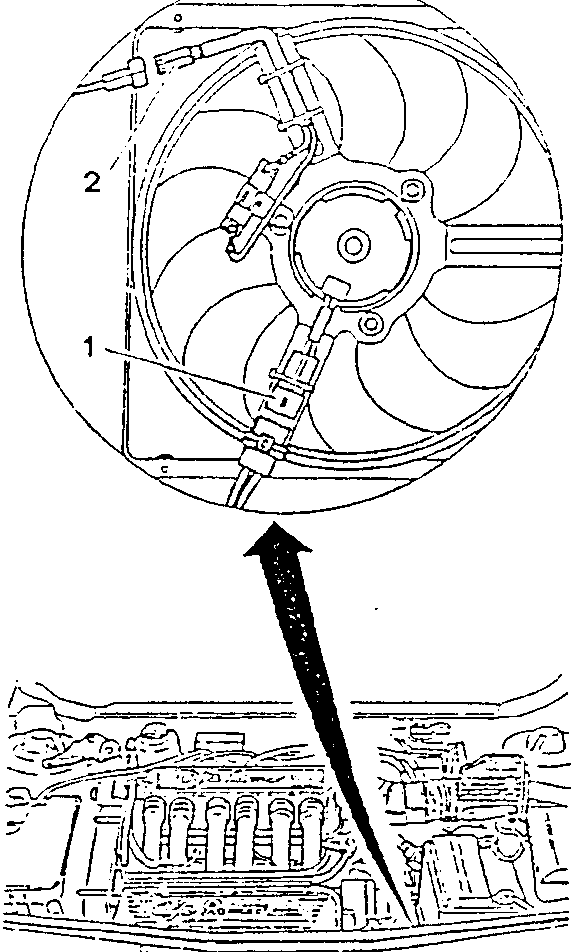

  1. Disconnect the electrical connections of the electric cooling fan.
  2. Disconnect the electric fan electrical connection.
Electric cooling fan with two electrical connectors
Front grille area showing the engine compartment

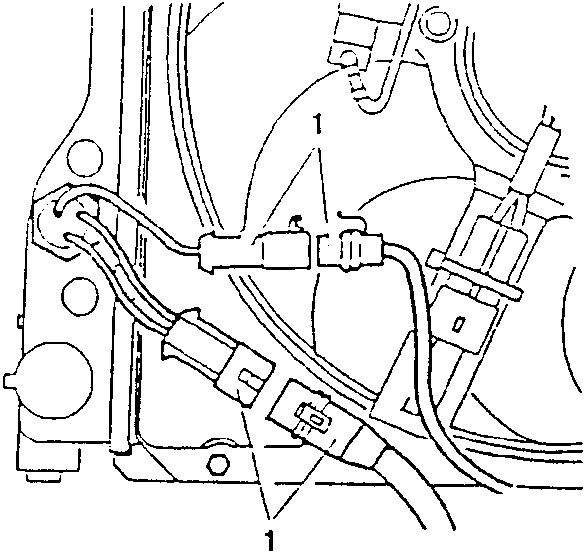

  1. Disconnect the two connections of the electric cooling fan thermocontact.
Close-up of electric cooling fan thermocontact connections
  • Raise the vehicle.

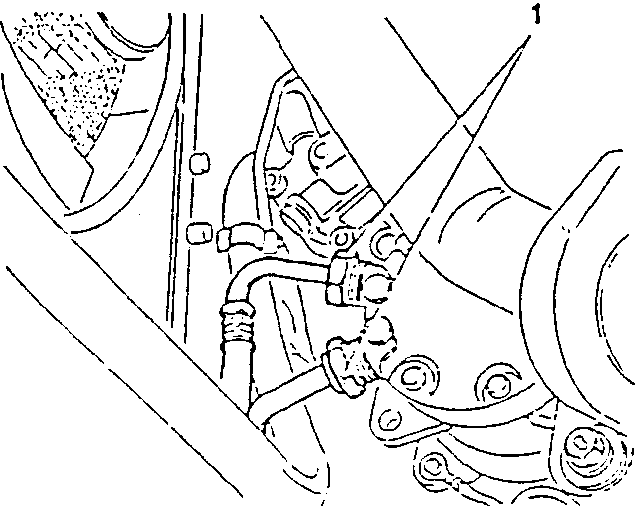

  1. Disconnect the intake and delivery unions from the compressor and plug the unions on the compressor.
Compressor with intake and delivery unions disconnected
