Removal/refitting (page 3 of 3)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Radiator

Engine cooling (V6)Removal/refitting · page 3 of 3

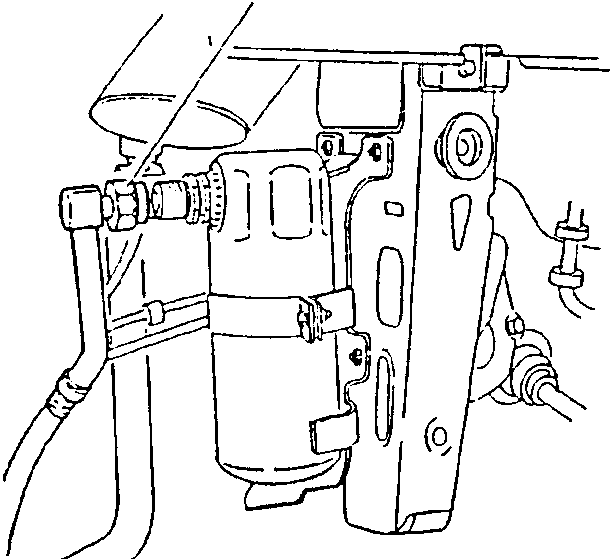

1. Disconnect the freon inlet union from the dehydrating filter of the air conditioning system.

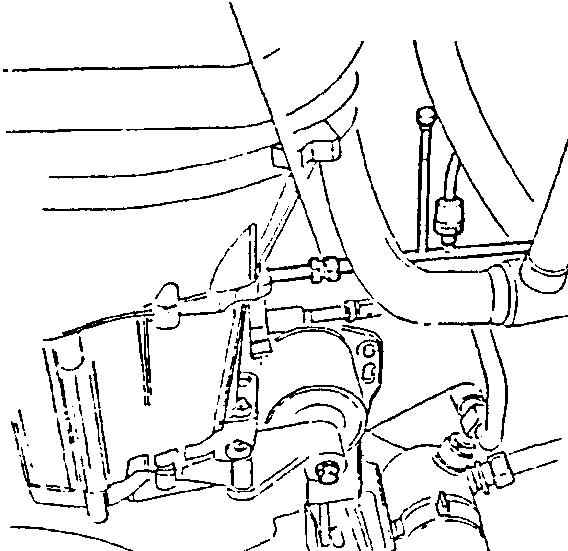

1. Disconnect the air conditioning system intermediate union.

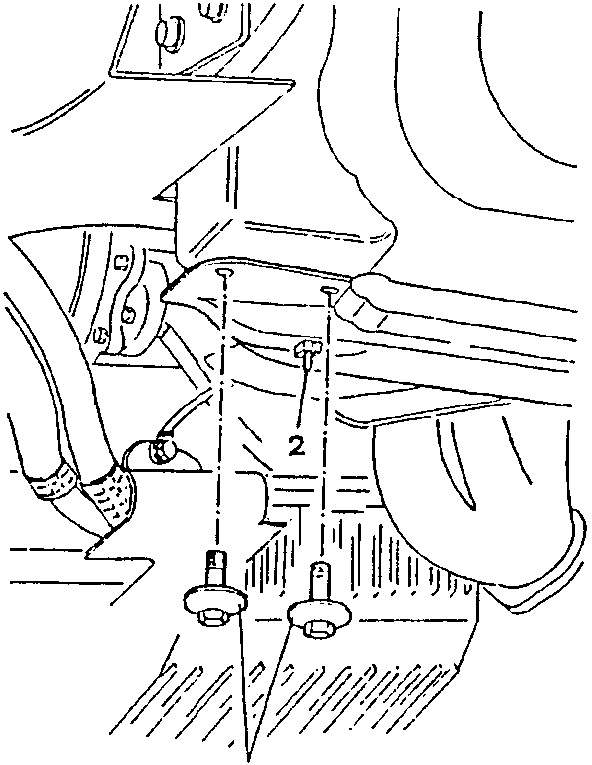

1. Unscrew the screws securing the lower crossmember to the body.
2. Unscrew the screw securing the oil radiator air conveyor to the crossmember.

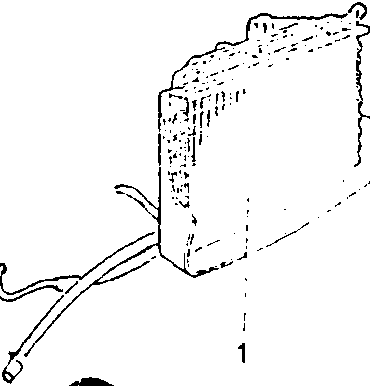

1. Remove the radiator assembly and air conditioning condenser complete with electric fan and pipes.
