Engine – mechanical (Twin Spark)Exhaust side camshaft · page 1 of 2

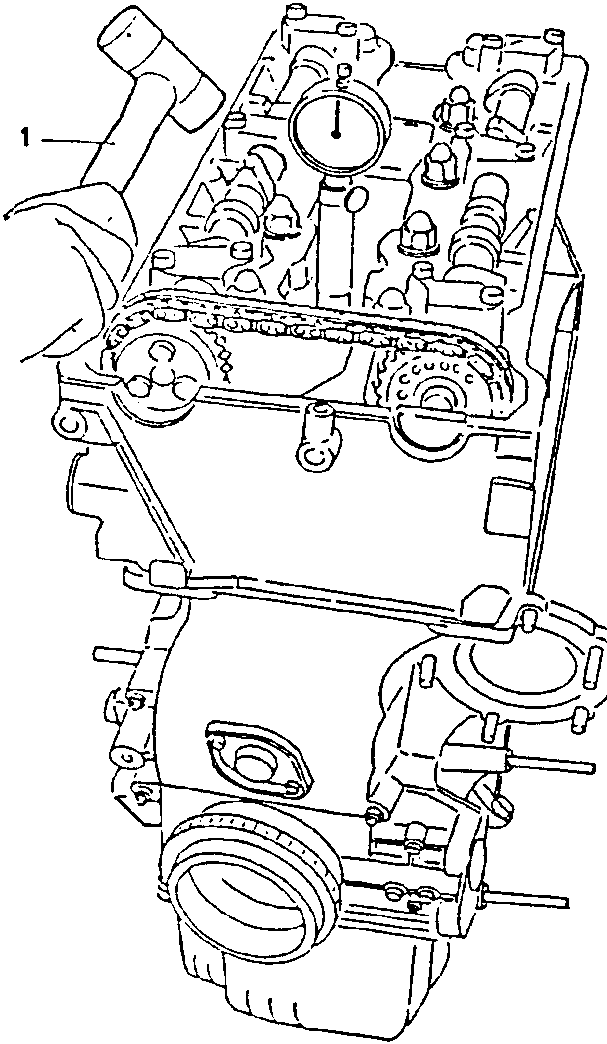

- Using a plastic mallet, rotate the camshaft until the reference notches are aligned.
NOTE: The rotation of the camshaft is permitted by the slotted holes present on the toothed wheel and by having left the three retaining screws untightened when refitting.
- 1

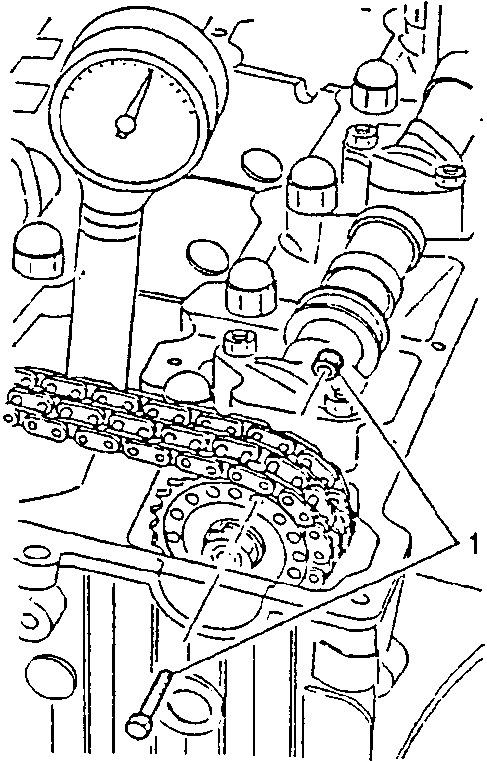

Exhaust side camshaft
- Remove the bolt securing the toothed wheel to the flange.
- 1

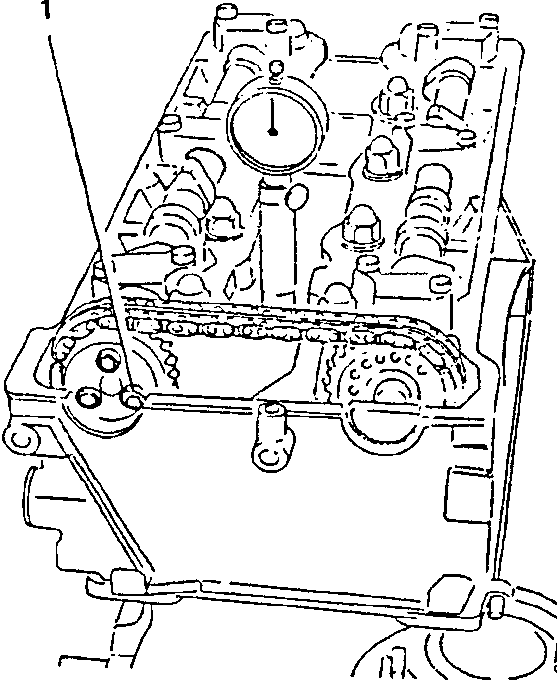

Timing Variator
- Tighten the three screws of the timing variator.
29.5 ÷ 32.5 Nm
3.0 ÷ 3.3 kgm
