Alfa Romeo 155 Factory Service Manual (1992-1998)03 · Engine – mechanical (Twin Spark)
03 · Engine

Exhaust side camshaft (page 2 of 2)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Intake side camshaft
Engine – mechanical (Twin Spark)Exhaust side camshaft · page 2 of 2

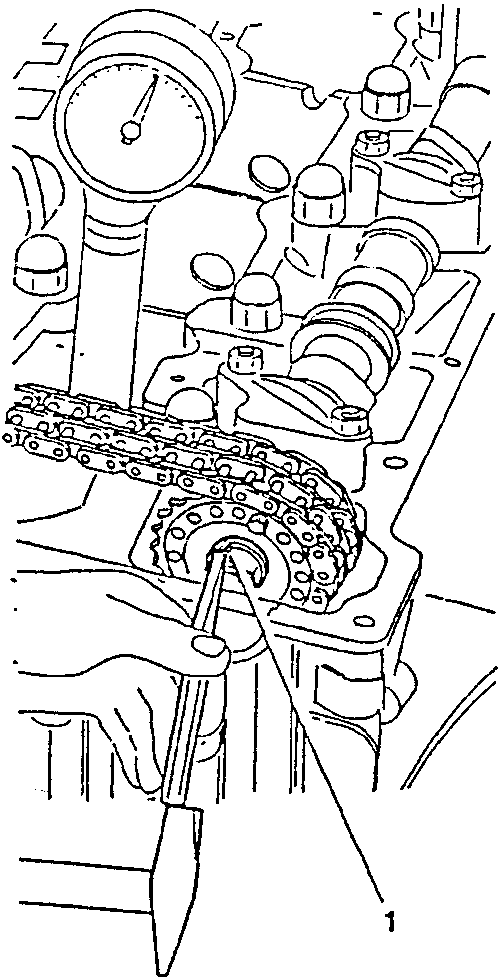

  1. Raise the edge of the nut retainer.
Diagram showing a hand using a tool to raise the edge of a nut retainer near a toothed wheel and chain.

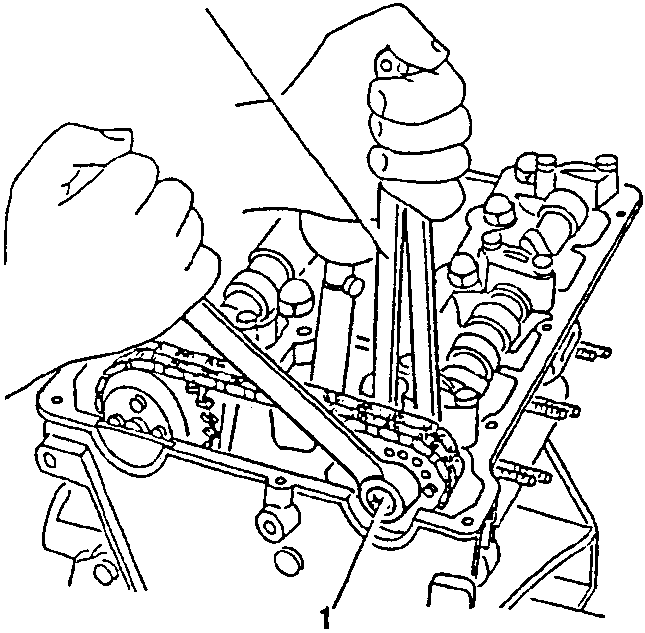

  1. Using tool N° 1.822.001.000 (A.5.0103) as a counter-torque, loosen the nut securing the toothed wheel to the camshaft.
Diagram showing hands using tool N° 1.822.001.000 (A.5.0103) to rotate a shaft while holding a chain in place, with timing marks visible on the toothed wheel and flange.
  • Using tool N° 1.822.001.000 (A.5.0103), rotate the shaft without moving the chain, until the timing marks are aligned.
  • Refit the bolt securing the toothed wheel to the flange and ensuring that the hole in the toothed wheel coincides with the hole in the flange.
  • Using tool N° 1.822.001.000 (A.5.0103), lock the nut securing the toothed wheel and bend the edge of the safety retainer back down.
