Engine – mechanical (V6)Main and rod journals · page 1 of 2
Main and rod journals

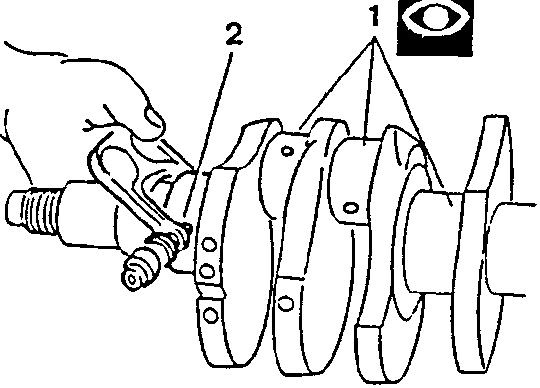

- Check that the main and rod journal working surfaces do not show traces of irregular wear, nicks, seizing or overheating.

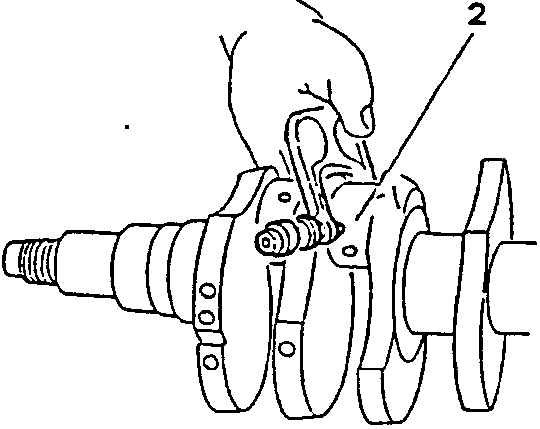

- Place the crankshaft on a tailstock bench and measure the diameter of the main and rod journals to check that they are within the prescribed limits.
NOTE: The nitriding treatment to which the crankshaft has been subject does not permit grinding operations to be carried out, therefore, if it is excessively worn it should be replaced.
NOTE: The crankshaft journals are subdivided into two classes distinguished by a coloured mark in accordance with the operational tolerances.
| RED (A) | 59.973 to 59.979 mm |
|---|---|
| BLUE (B) | 59.967 to 59.973 mm |
| GREEN (C) | 59.961 to 59.967 mm |
| RED (A) | 51.990 to 52.000 mm |
|---|---|
| BLUE (B) | 51.980 to 51.990 mm |
