Engine – mechanical (V6)Main and rod journals · page 2 of 2

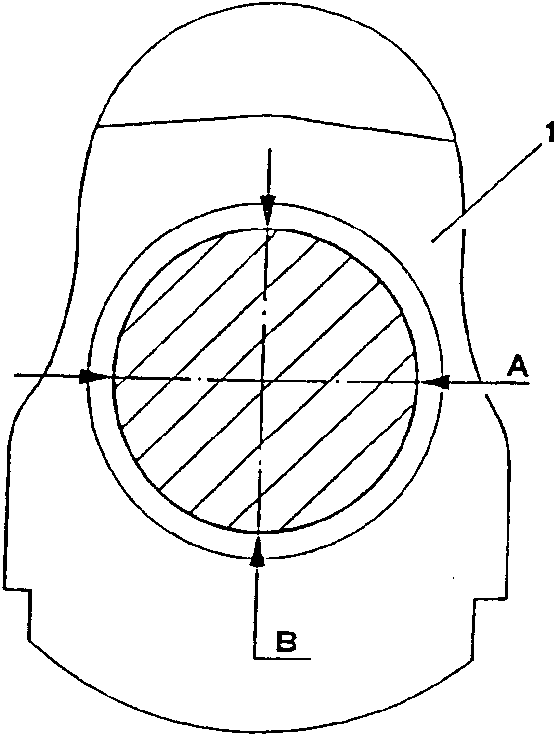

- Check that the ovalization of the main and rod journals is within the prescribed limits.
Main and rod journals maximum ovalization error
A - B = 0.004 mm
- Check eccentricity of central main journal and front and rear main journals.
Main journals maximum eccentricity
0.040 mm
- Check parallelism between main and rod journals.
Maximum parallelism error between main and rod journals
0.015 mm

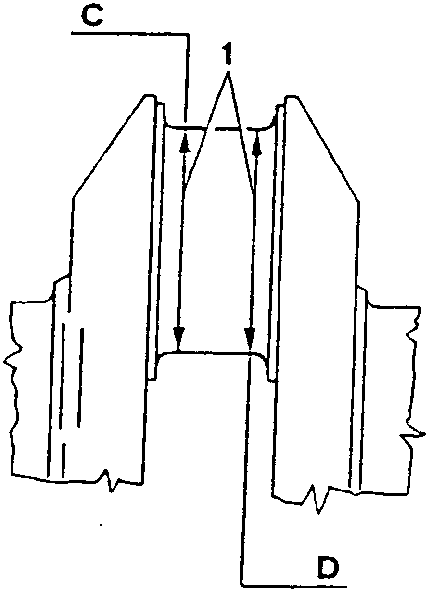

- Check that the taper of the main and rod journals is within the prescribed limits.
Main and rod journals maximum taper error
C - D = 0.010 mm
