Preliminary operations

PRELIMINARY OPERATIONS

NOTE: The operations described below refer to the right-hand cylinder head (unless stated otherwise). The procedure for disassembly of the left cylinder head is similar to that given for the right.

1. Lock the adjustable support N° 1.820.012.000 (A.2.0195) in a vice.
2. Install the fork N° 1.820.050.000 (A.2.0360) and lock it to the support.
3. Install the cylinder head on the fork studs.
4. Lock the cylinder head using two spacers and two lock-nuts.
5. Remove the engine lifting bracket.

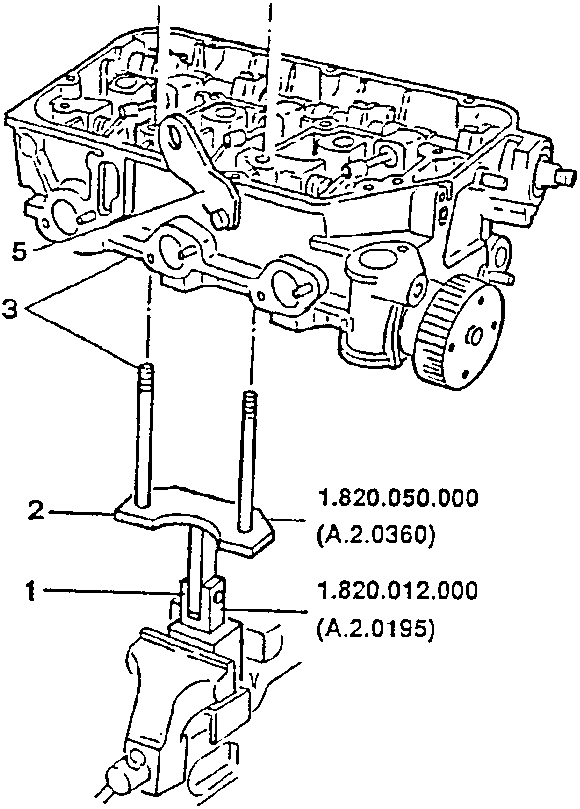

1. Adjustable support 1.820.012.000 (A.2.0195)
2. Fork 1.820.050.000 (A.2.0360)
3. Cylinder head
4. Lock-nuts
5. Engine lifting bracket
