Removal of crankshaft (page 2 of 2)

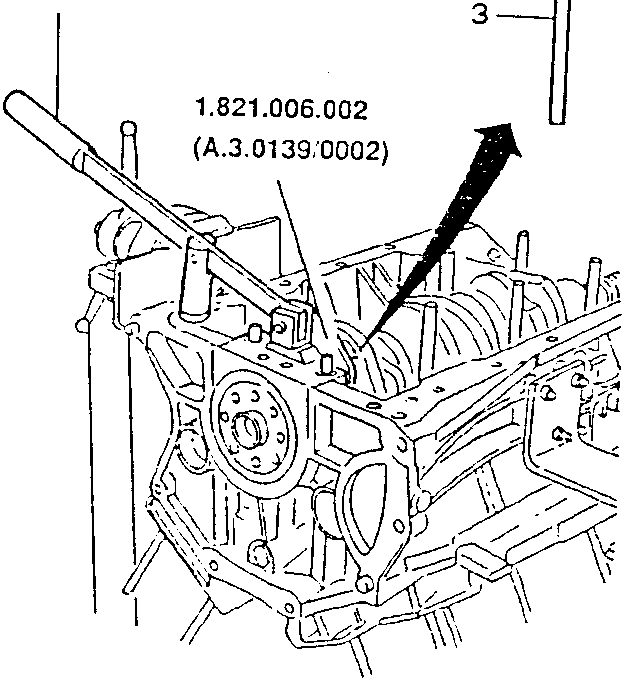

1. Remove the rear main bearing cap using a puller consisting of lever N° 1.821.006.001 (A.3.0139/0001) and fork N° 1.821.906.002 (A.3.0139/0002).
2. Remove the relative main bearing half.
3. Remove rubber pads.

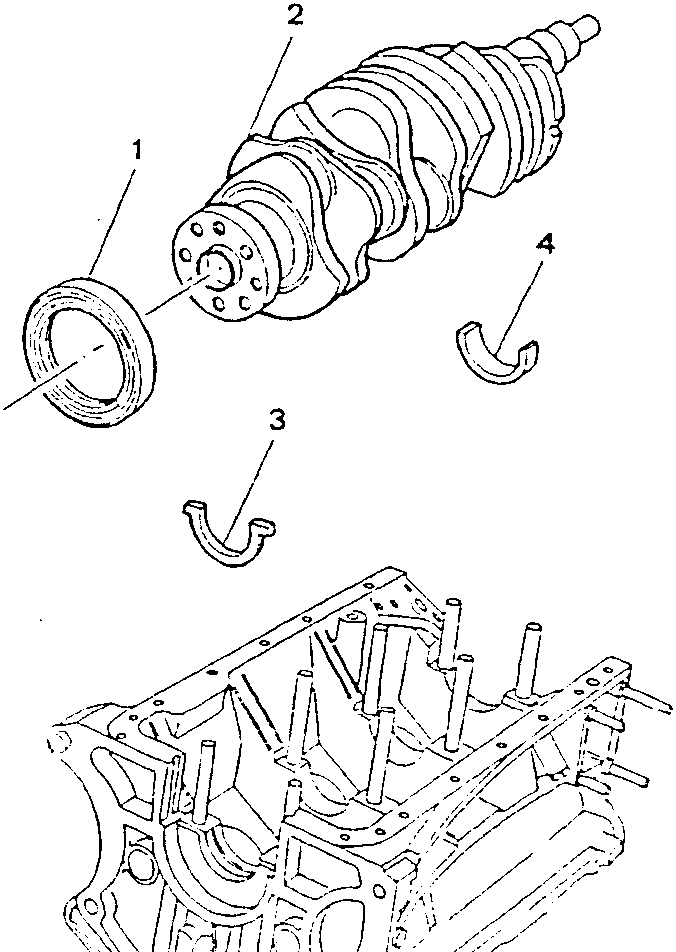

1. Remove the oil seal.
2. Remove the crankshaft.
3. Remove the thrust half-bearings.
4. Remove the main half-bearings from the engine block.

Note the reciprocal position if the parts are to be reassembled.

For installation of the crankshaft, observe the warnings given in the relevant paragraph.
