Engine – mechanical (V6)Engine – mechanical (V6) · page 8 of 14

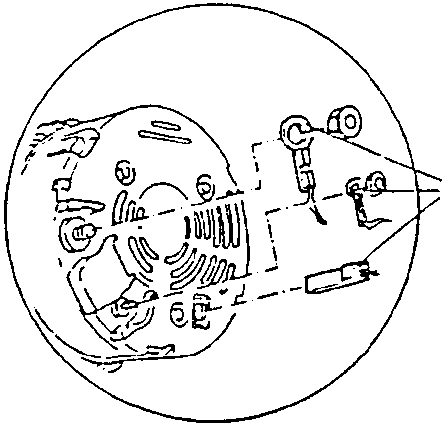

  1. Disconnect the electrical connections from the alternator.
    Alternator electrical connections diagram

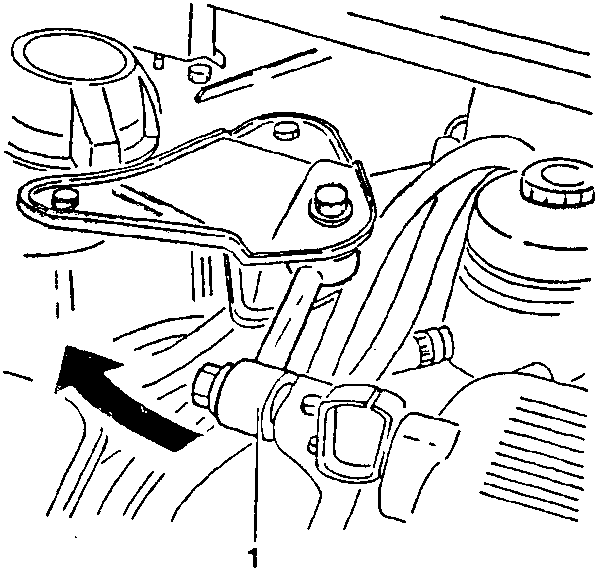

  2. Disconnect the antivibration rod from the engine and move it sideways.

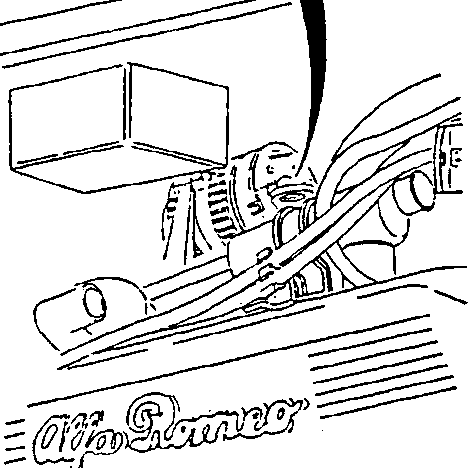

    Illustrates engine compartment with Alfa Romeo branding visible
    Antivibration rod disconnection diagram
  • Raise the vehicle.

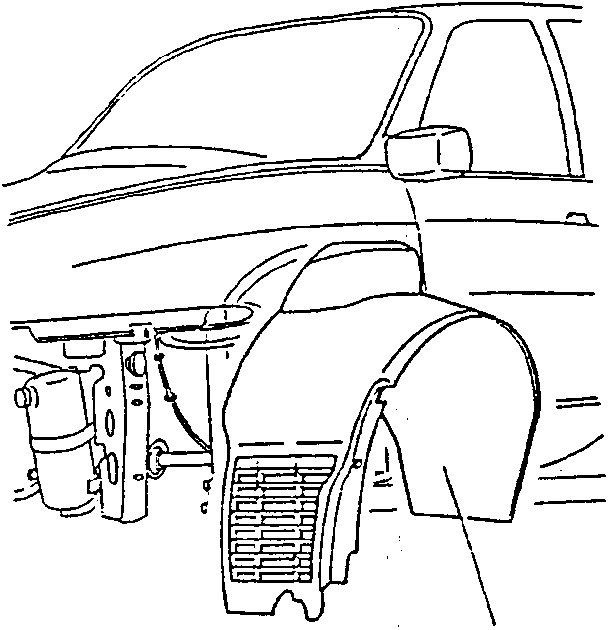

  • Remove the left-hand wheel housing.
    Left-hand wheel housing removal diagram

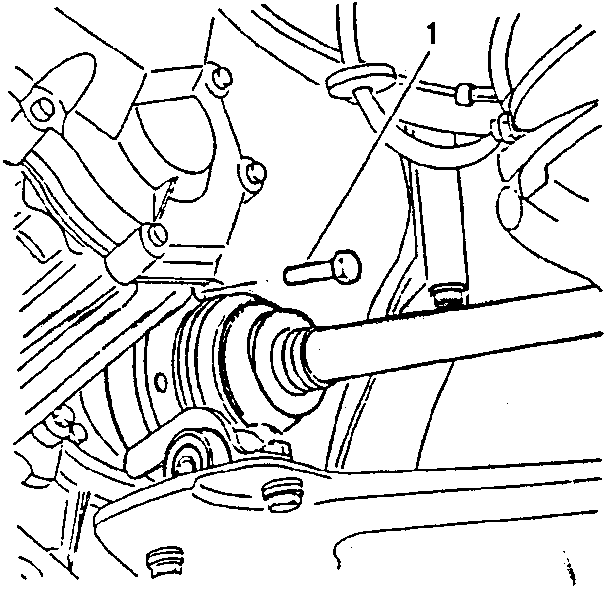

  1. Disconnect the left-hand drive shaft.
    Left-hand drive shaft disconnection diagram
