1. Unscrew the retaining nut of the steering rod ball joint - left side.

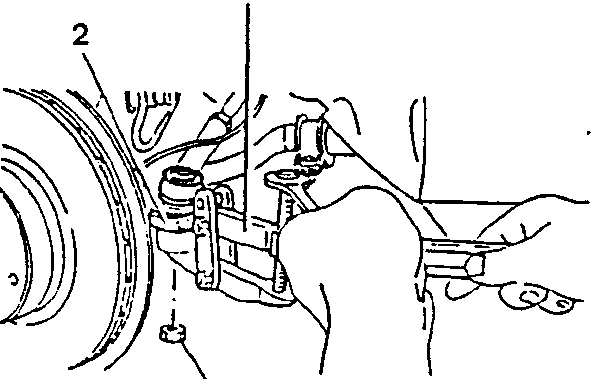

2. Using puller N° 1.821.169.000 (A.3.0633) remove the tie rod from the control lever on the pillar.

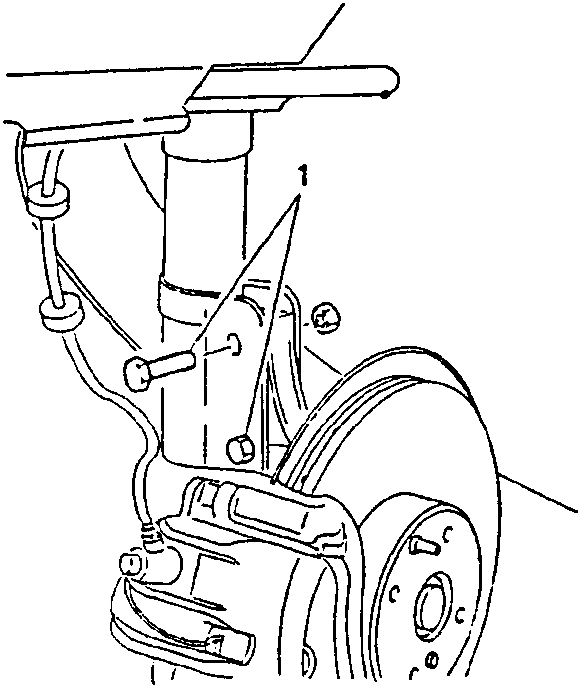

1. Loosen the two bolts securing the hub support to the front right shock absorber and remove the upper bolt only.

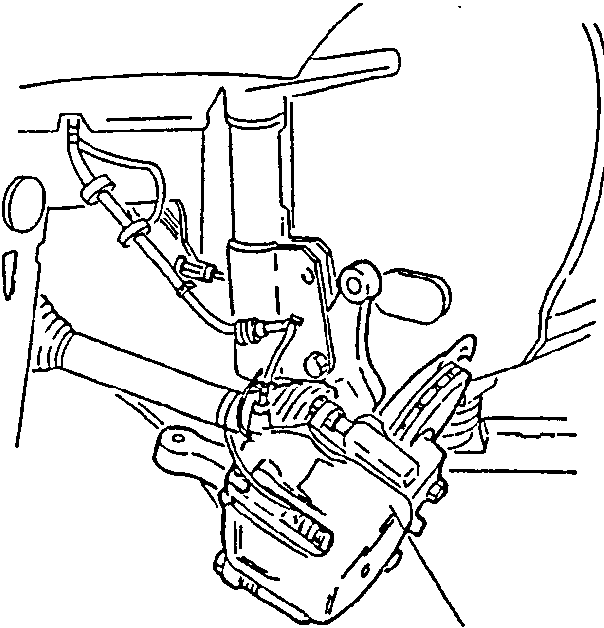

1. As far as possible, tip the wheel hub forward so that the drive shaft moves forward.
   - Advance the right-hand drive shaft from its support proceeding in the same fashion as on the left-hand side.

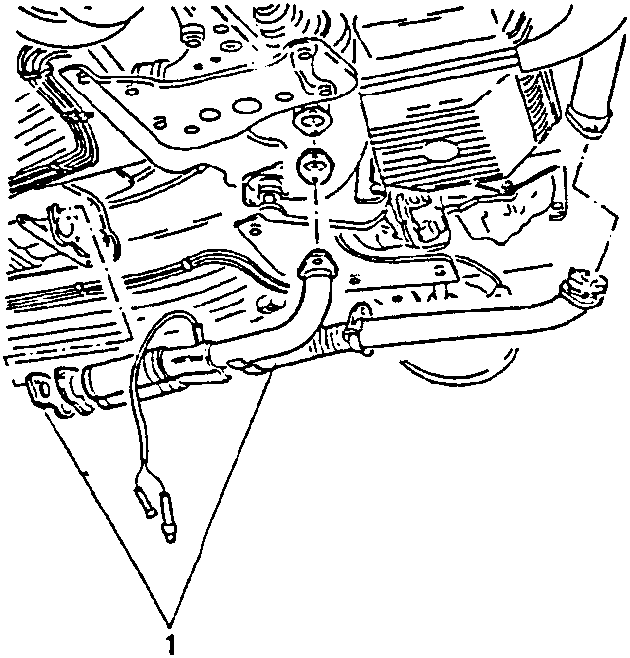

1. Disconnect the front part of the exhaust pipe and remove it together with the relevant gaskets.
