Alfa Romeo 155 Factory Service Manual (1992-1998)07 · Engine – mechanical (V6)
07 · Engine

Hydraulic belt tensioner overhaul (page 2 of 3)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Hydraulic belt tensioner overhaul
Engine – mechanical (V6)Hydraulic belt tensioner overhaul · page 2 of 3
  1. Remove the cover.
  2. Remove the gasket.
  3. Remove the spring.

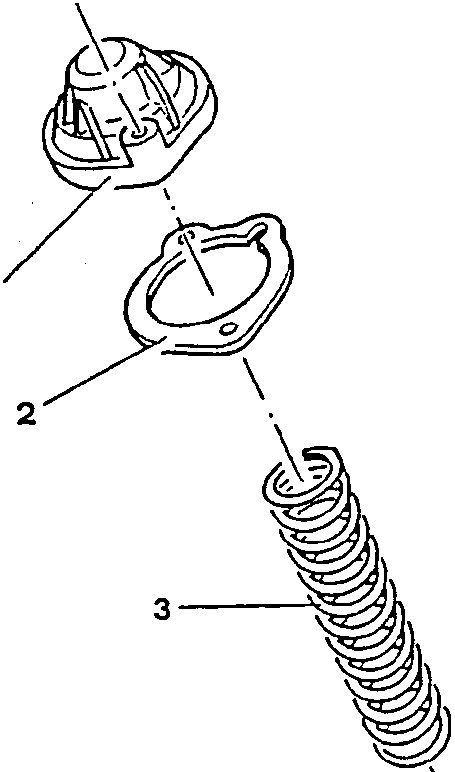

Diagram showing removal of cover, gasket, and spring with torque specification F1 8,1 ÷ 10 Nm 0.83 ÷ 1.02 kgm

8.1 ÷ 10 Nm
0.83 ÷ 1.02 kgm

  1. cover
  2. gasket
  3. spring
Diagram showing removal of cover, gasket, and spring with torque specification F1 8,1 ÷ 10 Nm 0.83 ÷ 1.02 kgm
Diagram showing removal of cover, gasket, and spring with torque specification F1 8,1 ÷ 10 Nm 0.83 ÷ 1.02 kgm
  1. Withdraw the piston from the belt tensioner body.
Diagram showing piston being withdrawn from belt tensioner body

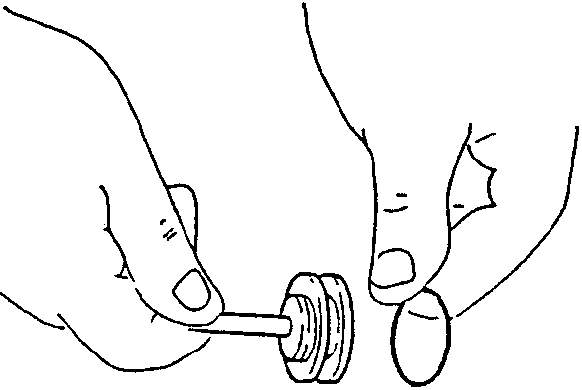

  1. Remove the O-ring from the piston.
Diagram showing piston with O-ring
Diagram showing hand removing O-ring from piston
