Engine – mechanical (V6)Hydraulic belt tensioner overhaul · page 3 of 3

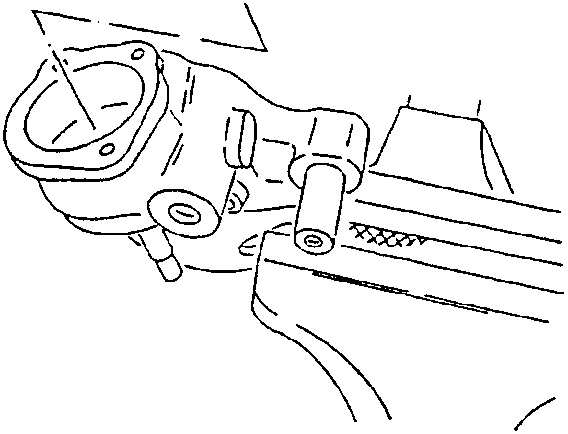

- Remove the piston stem guide
- Remove the O-ring.

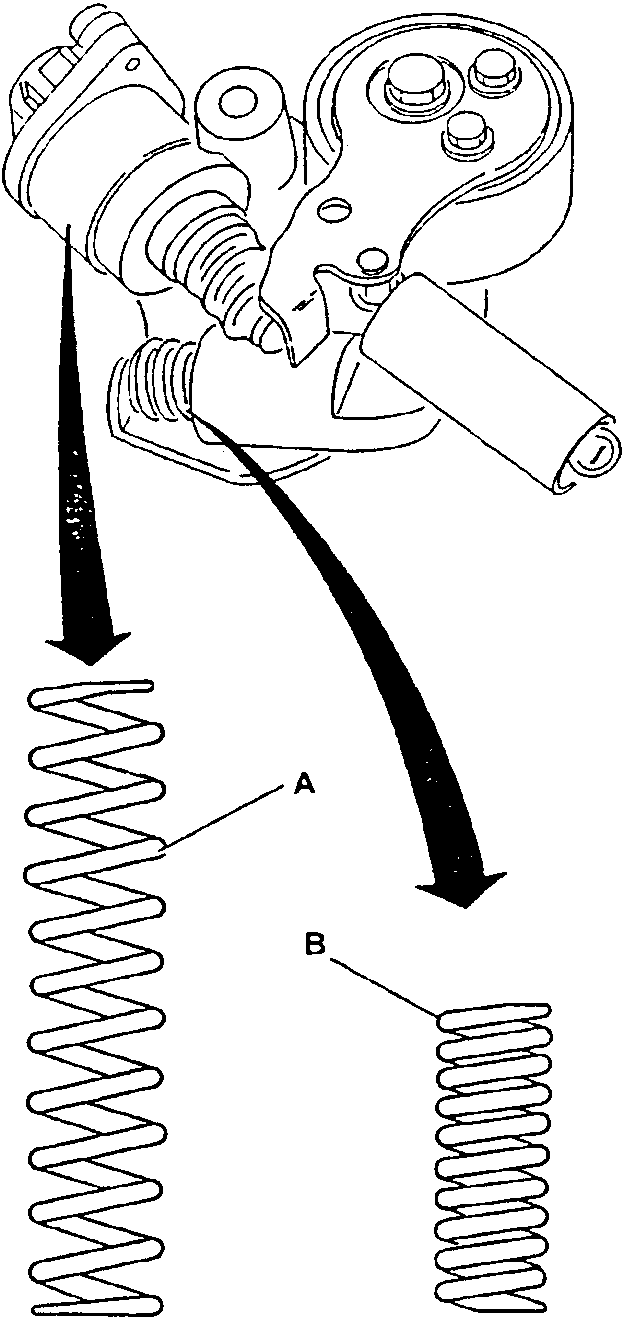

- Check spring "A" (which acts on the piston) and spring "B" (which preloads the hydraulic belt tensioner) and check that the characteristic data conform to the prescribed values.
| Sprong A | Spring B | |
|---|---|---|
| Useful number of turns | 12 | 9 |
| Length of free spring | 93 mm | 45.5 mm |
| Static test load | 93,2 N (9.5 kg) | 98 N (10 kg) |
| Length of loaded spring | 48 mm | 30mm |
- Reassemble the hydraulic belt tensioner by reversing the disassembly procedure.
CAUTION: The oil seals should be replaced each time the belt tensioner is overhauled.
