Engine – mechanical (V6)Power steering pump removal
  1. Loosen the screws of the power steering pump drive belt micrometric tensioner.
  2. Remove the 3 screws securing the power steering support bracket.

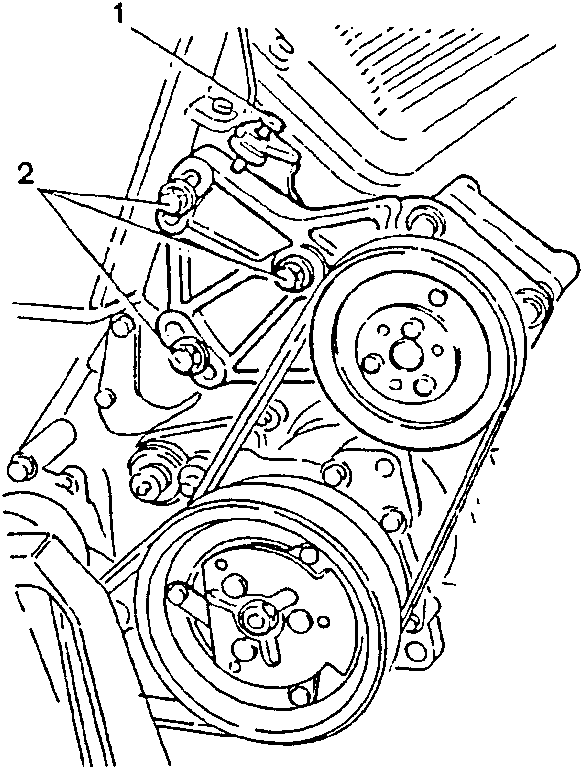

Power steering pump and belt tensioner assembly
  1. Remove the plate with the micrometric tensioner.

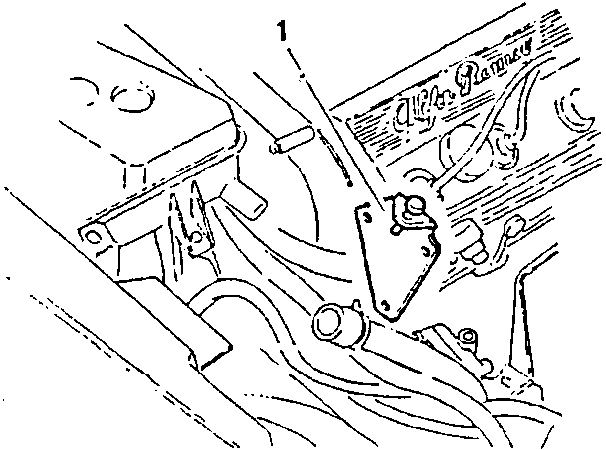

Micrometric tensioner plate removal
  1. Disconnect the delivery connection from the power steering pump.

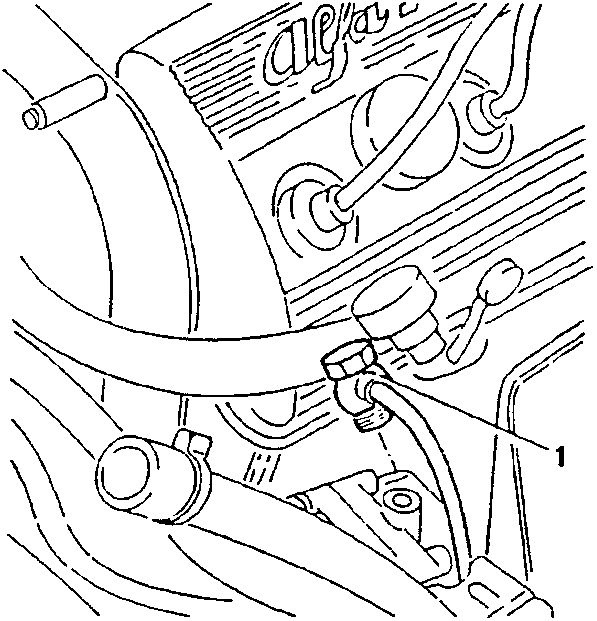

Delivery connection disconnected from pump
  1. Remove the power steering pump together with the support bracket.

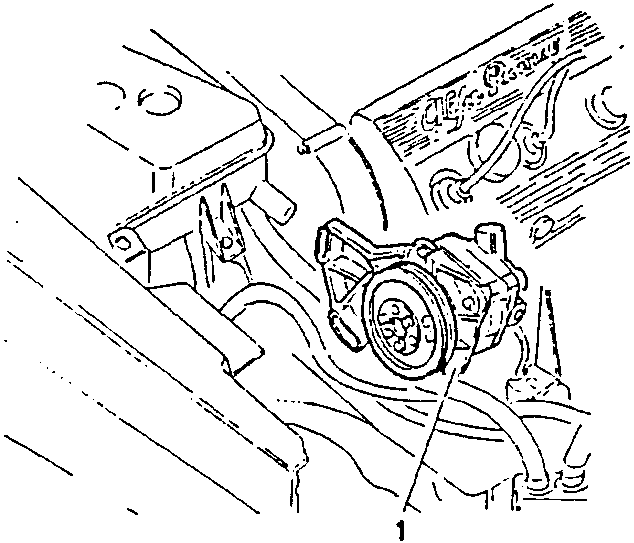

Power steering pump and support bracket removed
