Removal of the cylinder heads (page 7 of 7)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

"on vehicle" operations

Engine – mechanical (V6)Removal of the cylinder heads · page 7 of 7

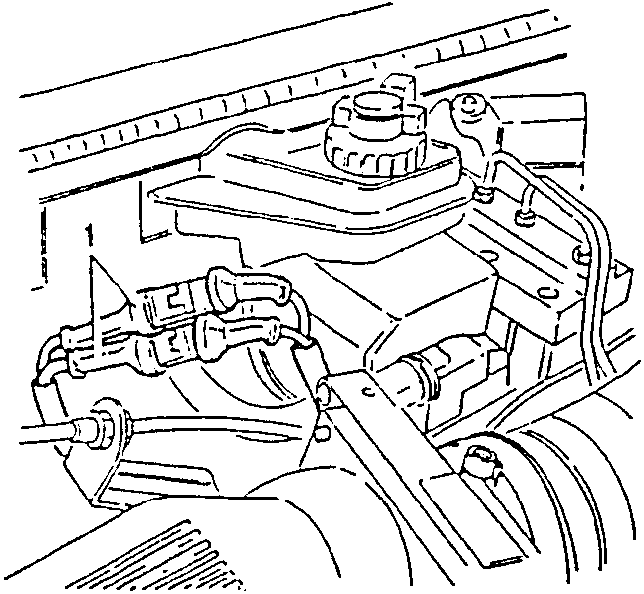

1. Disconnect the two electrical connections of the Lambda probe.

• Raise the vehicle.

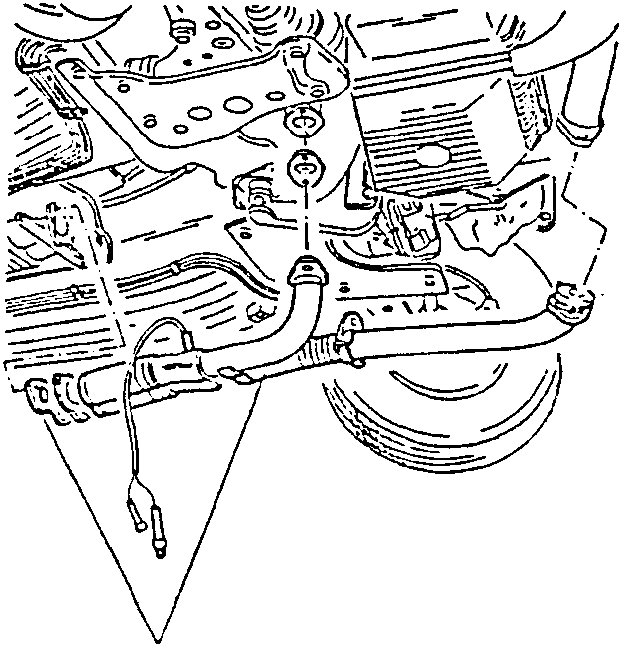

1. Disconnect and remove the front section of the piping and remove the gaskets.

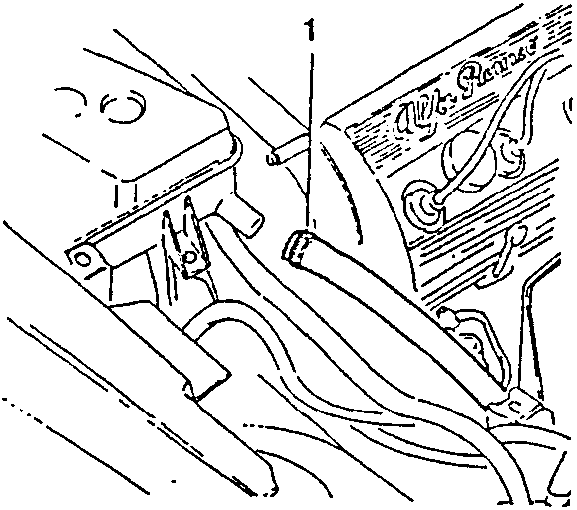

1. Disconnect the engine coolant to radiator delivery sleeve from the expansion tank.

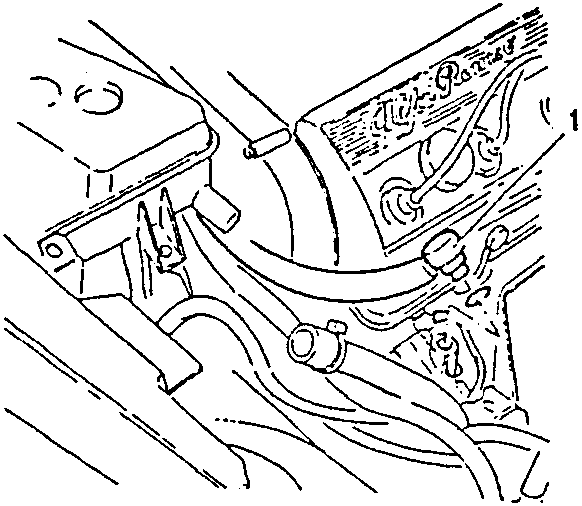

1. Disconnect the intake connection from the power steering pump.

07 Engine
