Removal of the cylinder heads (page 6 of 7)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- "on vehicle" operations
Engine – mechanical (V6)Removal of the cylinder heads · page 6 of 7

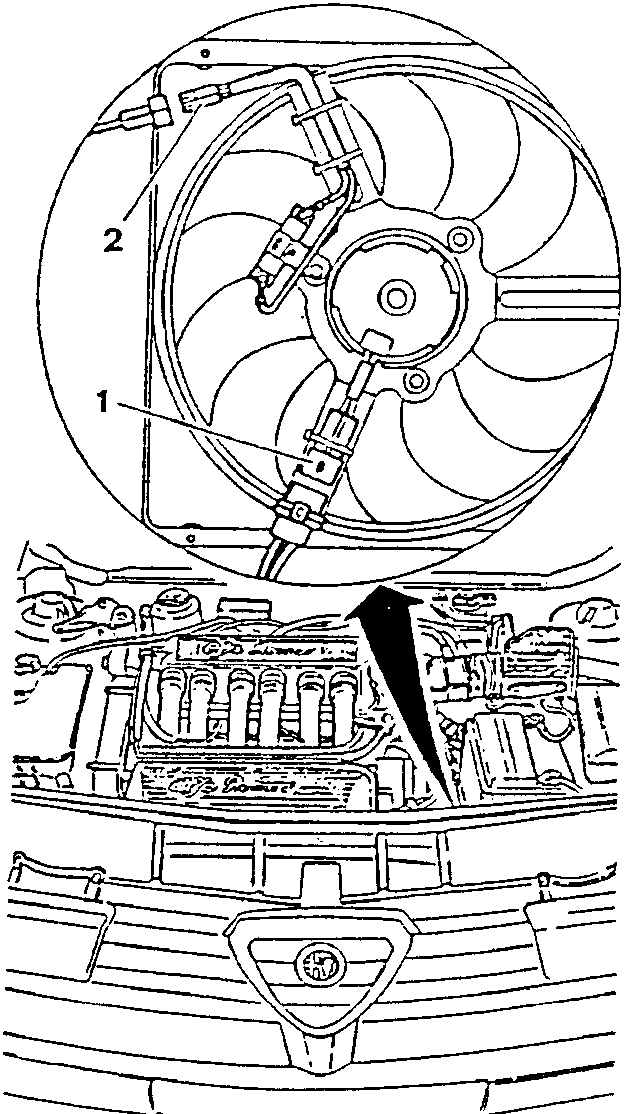

- Disconnect the electrical connections of the engine cooling fan.
- Disconnect the electrical connections of the engine cooling fan resistor.

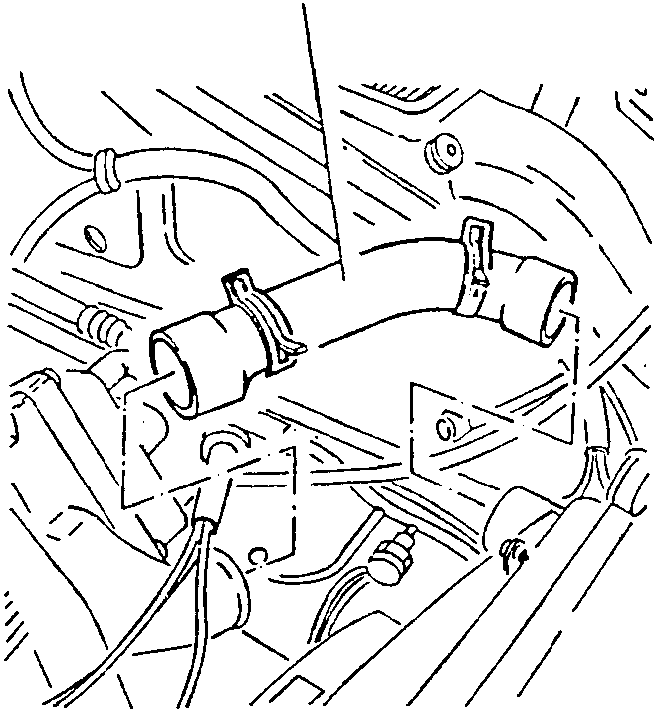

- Remove the hose connecting the radiator to the ignition coil support.

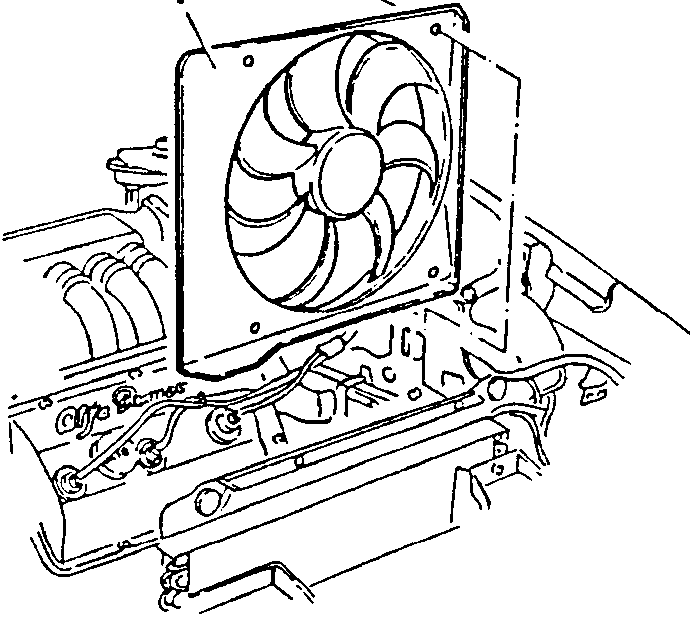

- Remove the electric fan after removing the 4 screws securing it to the radiator.
