07 · Engine

Removal of the cylinder heads (page 4 of 7)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
"on vehicle" operations
Engine – mechanical (V6)Removal of the cylinder heads · page 4 of 7

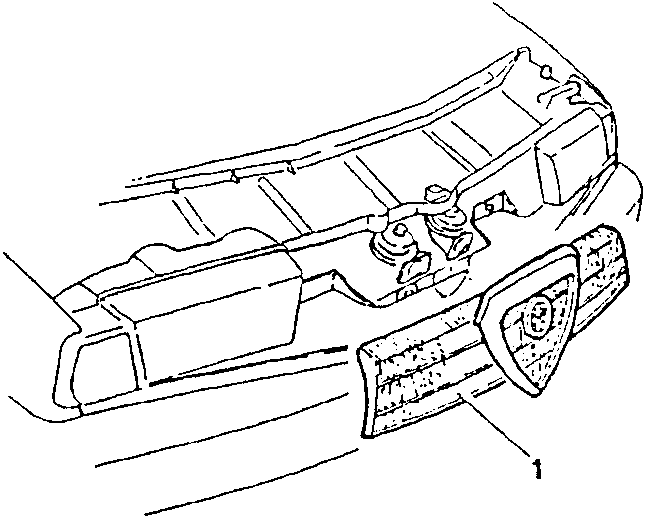

  1. Remove the grill (see GROUP 75).
Front view of car's front end showing grille and trim strips

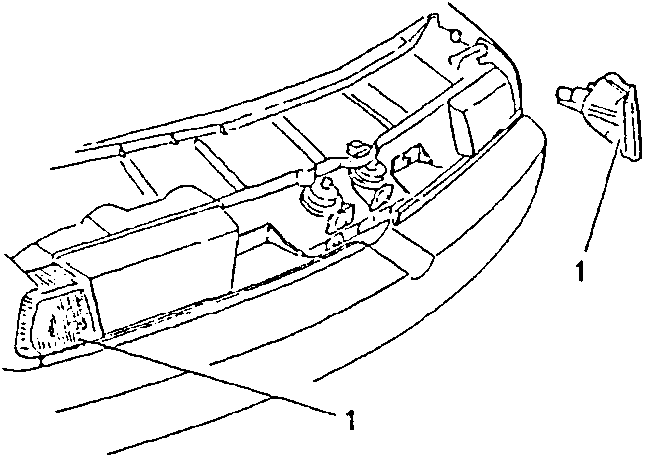

  1. Remove the front direction indicators (see GROUP 40).
Close-up of front indicator light assembly

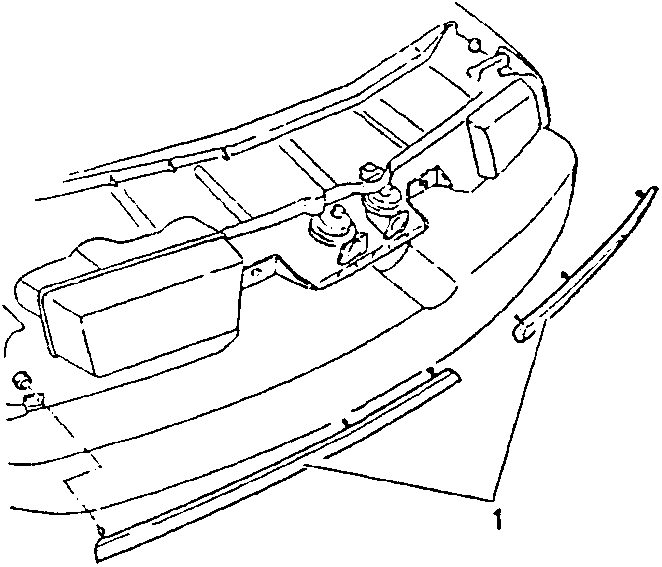

  1. Remove the two strips of trim by unscrewing the lateral nut securing them to the body,
Front view showing trim strips and lateral nuts

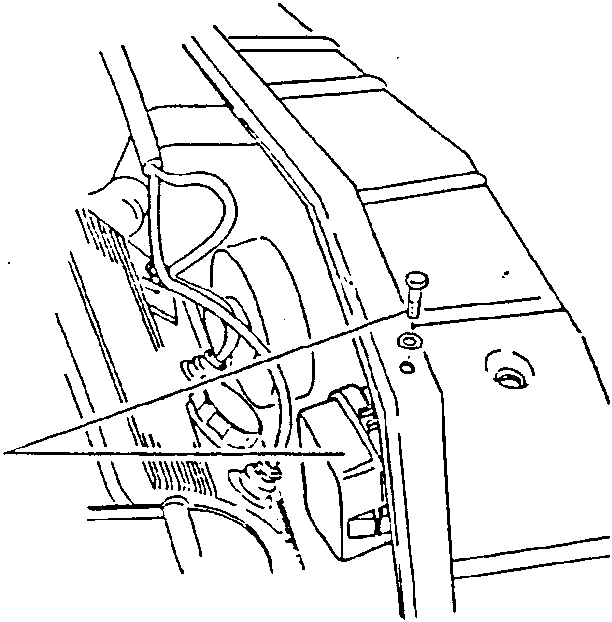

  1. Unscrew the screws securing the relay box to the cross-member, and tie it to one side so that it does not get in the way when the cylinder heads are removed.
Engine bay showing relay box and cross-member
