Alfa Romeo 155 Factory Service Manual (1992-1998)07 · Engine – mechanical (V6)
07 · Engine

Removal of the cylinder heads (page 3 of 7)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
"on vehicle" operations
Engine – mechanical (V6)Removal of the cylinder heads · page 3 of 7

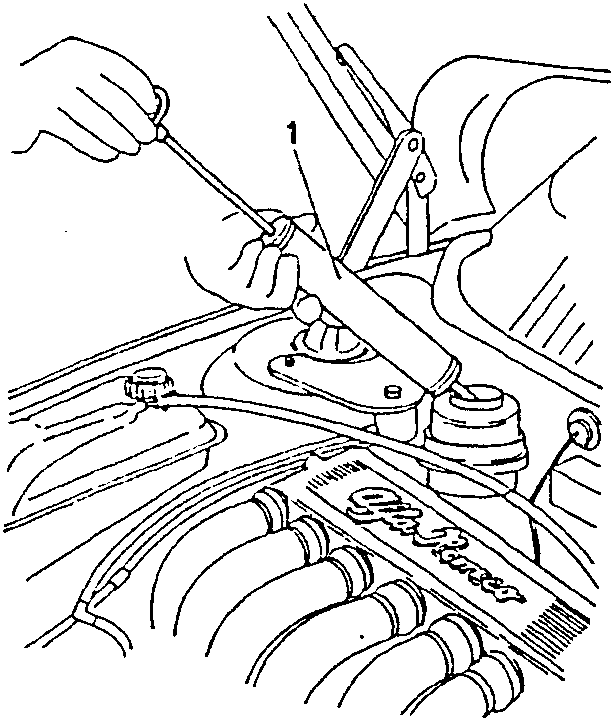

  1. Drain the power steering system fluid reservoir using a suitable syringe.
Power steering fluid reservoir being drained with a syringe

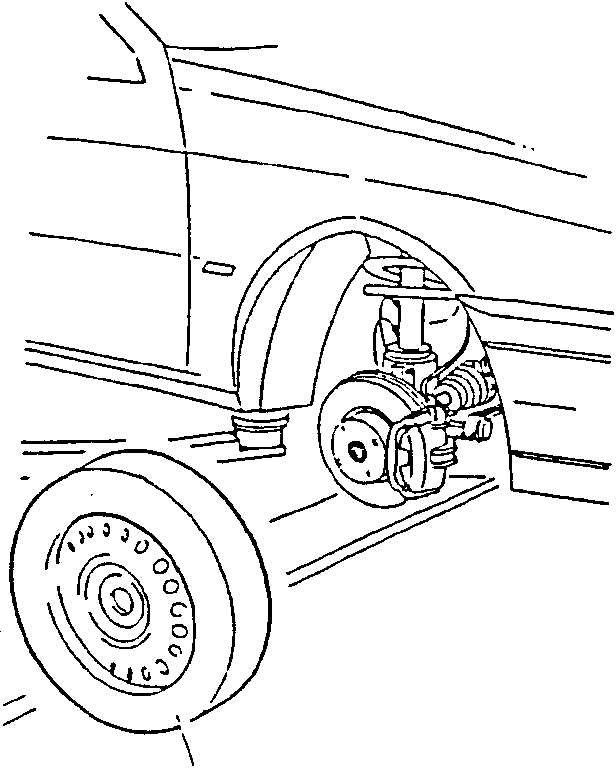

  1. Remove the front right wheel.
Front right wheel being removed from the vehicle

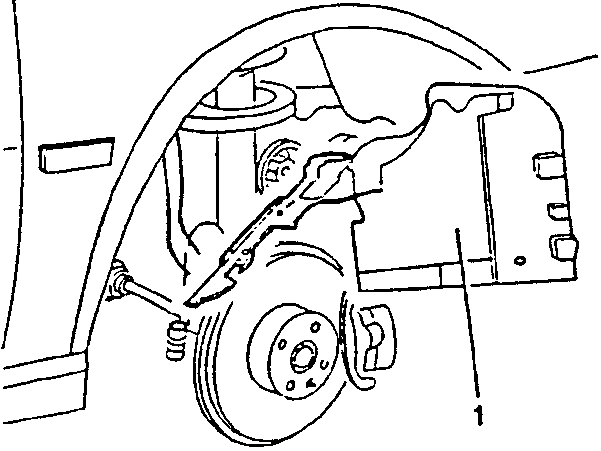

  1. Remove the dust cover from the front right-hand wheelhousing.
Dust cover being removed from the front right-hand wheelhousing

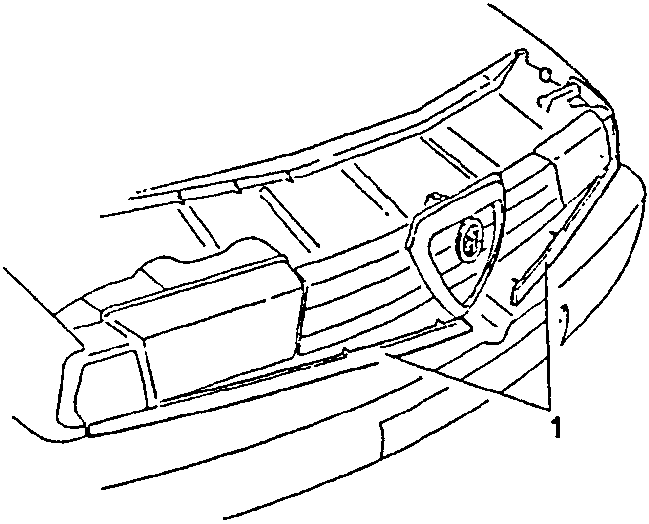

  1. Working from the centre, remove the two strips of front grill trim.
Front grill trim being removed from the vehicle
