Removal of the cylinder heads (page 2 of 7)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

"on vehicle" operations

Engine – mechanical (V6)Removal of the cylinder heads · page 2 of 7

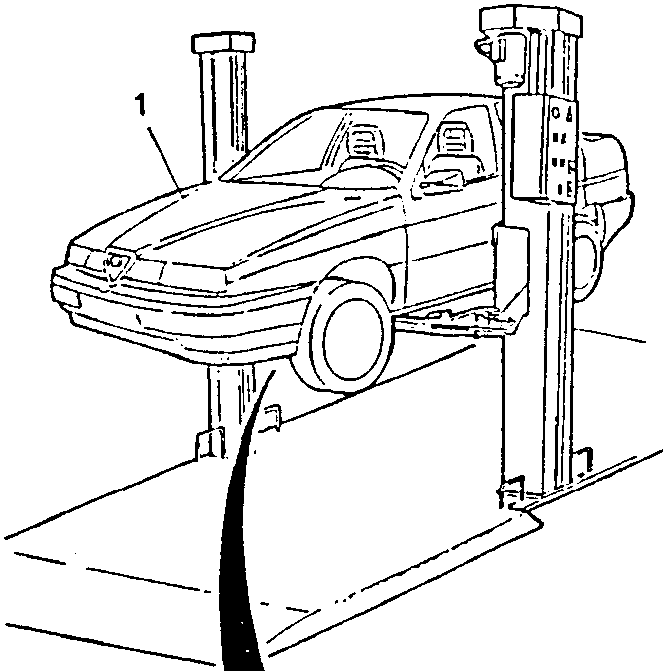

1. Raise the vehicle.

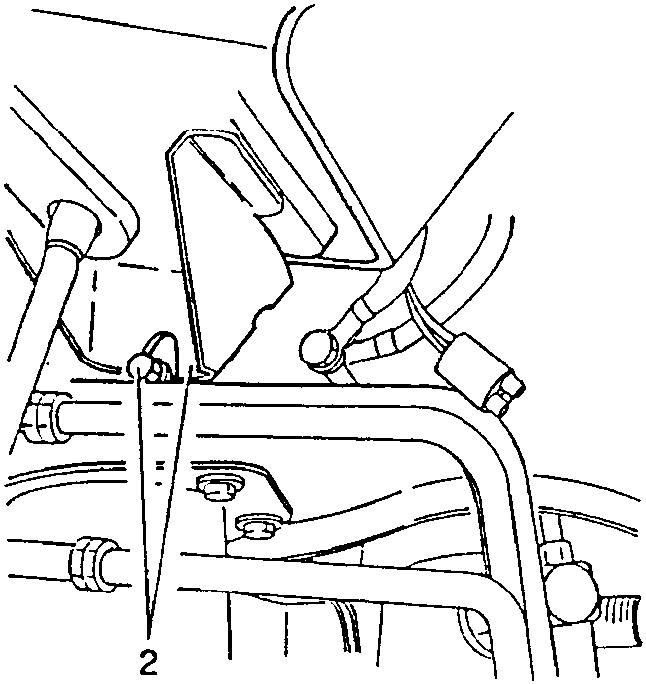

2. Loosen the lower screw securing the battery support to the body.

2. Lower the vehicle.

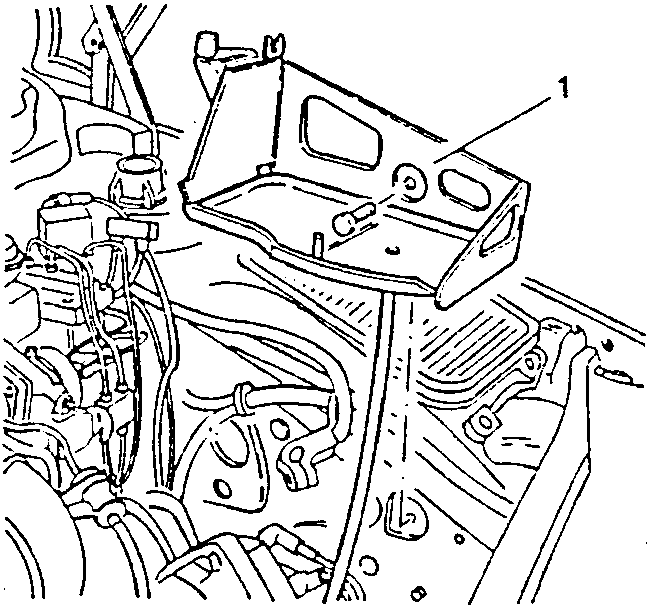

3. Unscrew the remaining three screws securing the battery support to the body and remove the support from the vehicle.

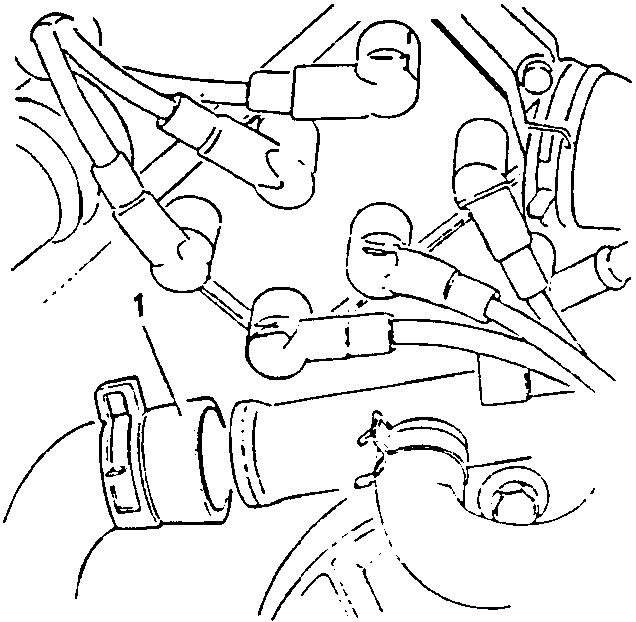

1. Drain the engine coolant into a suitable container by removing the cap from the expansion tank and disconnecting the outlet pipe from the radiator.

CAUTION The antifreeze mixture, used as engine coolant can damage paintwork.

07 Engine
