Engine – mechanical (V6)Removal of alternator · page 2 of 3
  1. Remove the belt tensioner.
  2. Remove alternator/water pump drive belt.

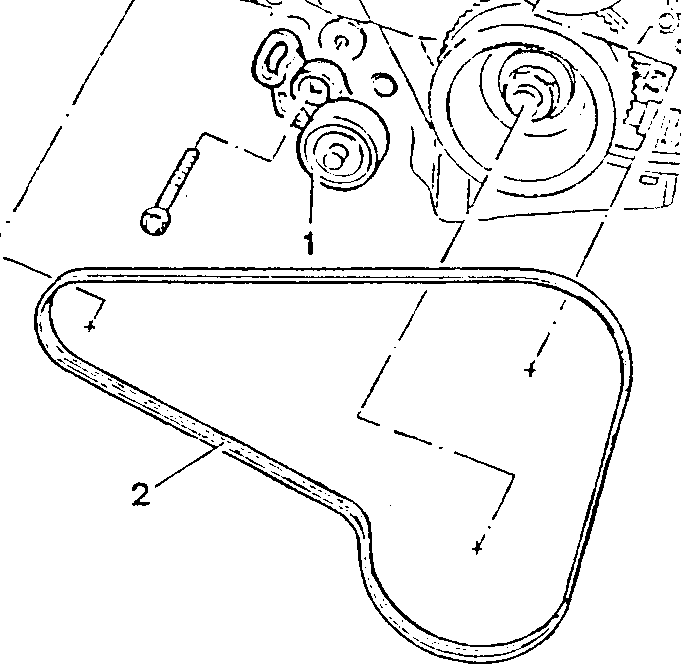

Engine main mechanical unit showing belt tensioner and drive belt
  1. Belt tensioner
  2. Drive belt
  3. Remove alternator.
Engine main mechanical unit showing alternator
  1. Alternator
