Engine – mechanical (V6)Removal of alternator · page 3 of 3

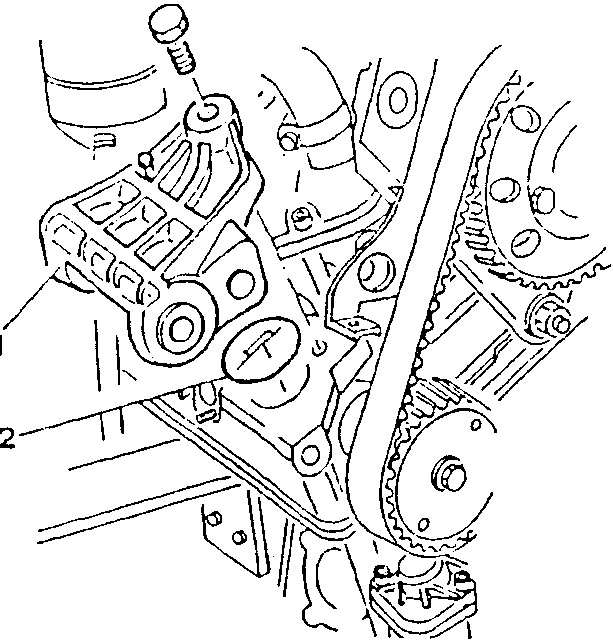

  1. Remove upper bracket supporting alternator.
  2. Remove O-Ring.
Engine showing upper bracket and O-ring removal

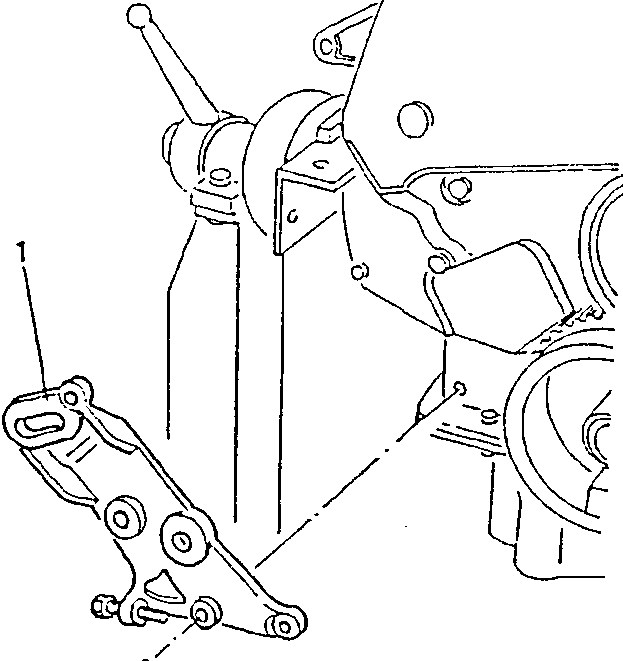

  1. Remove the lower bracket (timing side) supporting alternator.
Engine showing lower timing side bracket removal

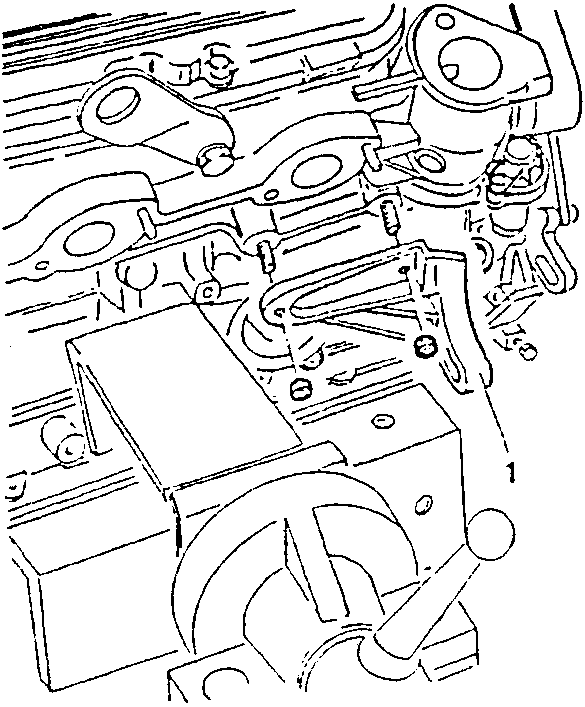

  1. Remove the lower bracket (flywheel side) supporting alternator.
Engine showing lower flywheel side bracket removal

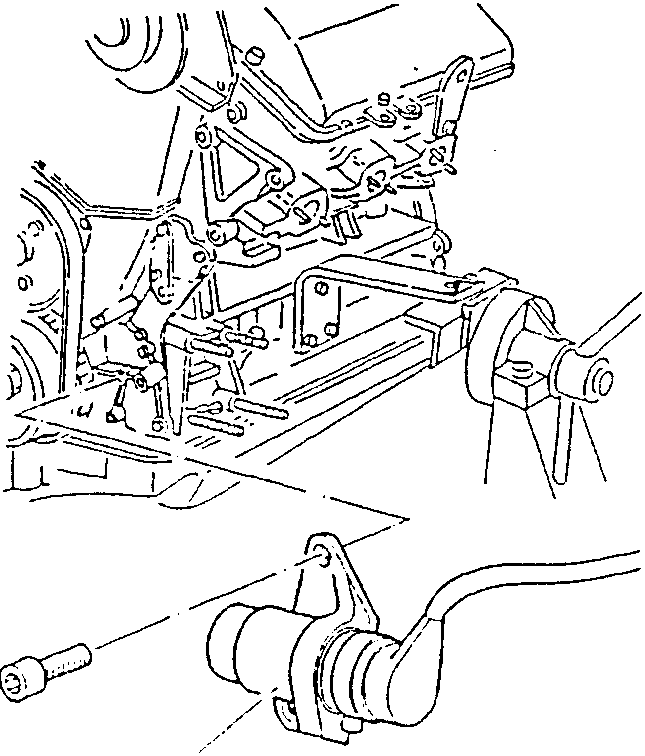

  1. Remove the r.p.m. and timing sensor and bracket.
Engine showing r.p.m. and timing sensor removal
