Engine – mechanical (V6)Valve disassembly · page 1 of 2

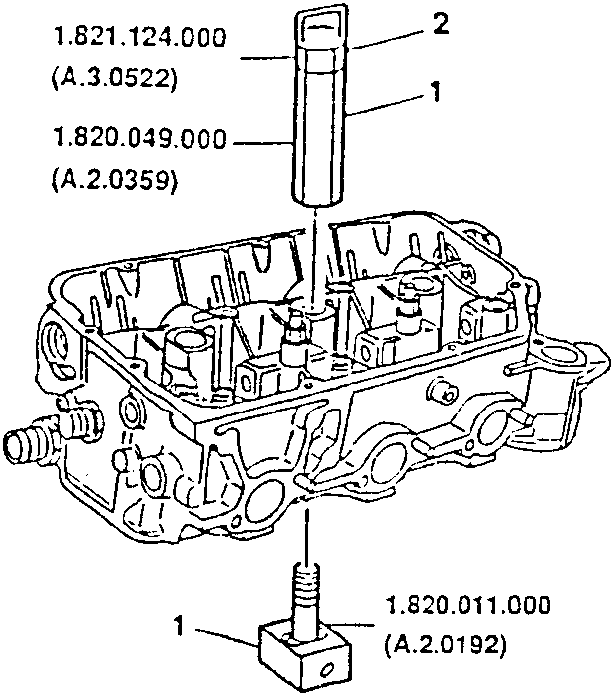

1. Insert valve supporting tool N° 1.820.011.000 (A.2.0192) through the lower side of the spark plug well and lock it with the special nut N° 1.820.049.000 (A.2.0359).
2. Screw support tool N° 1.821.124.000 onto the threaded end of tool N° 1.820.049.000 (A.2.0359).

1. 1.821.124.000 (A.3.0522)
2. 1.820.049.000 (A.2.0359)
3. 1.820.011.000 (A.2.0192)

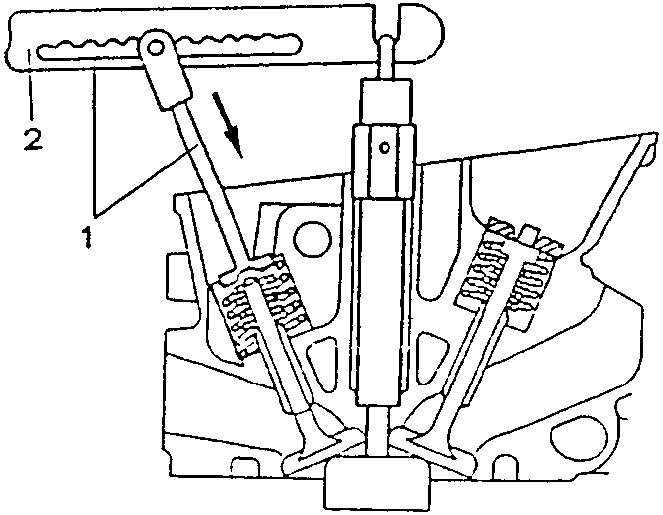

1. Position the previously assembled tools as shown in the diagram.
2. Press the lever of tool N° 1.821.058.000 (A.3.0324) to contrast the resistance of the valve springs.

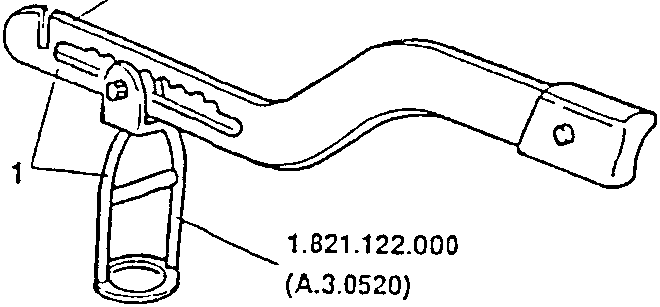

1. Install the cone halves disassembly/reassembly cage N° 1.821.122.000 (A.3.0520) onto lever N° 1.821.058.000 (A.3.0324).
